Connector Assembly Tools

SEARCH CONNECTOR ASSEMBLY TOOLS

Daniels Manufacturing Corporation® produces a variety of innovative connector assembly tools including insertion/removal (I/R) tools, contact retention testers, adapters, banding tools, jam nut sockets, and more. These tools are used to insert and remove contacts, verify their retention, and hold connectors while installing backshell, strain-relief, or EMI/RFI shielding.

View More

A variety of I/R tools have been designed to accommodate hundreds of connectors including mil-spec circular connectors. Probe, tweezer, and plier-style I/R tools are available in both plastic and metal allowing operators to properly install or remove contacts without damage. Contact retention tools allow for in-house quality assurance tests to check the retention of contacts within the connector. Adapter tools offer an improved method for holding connectors while assembling and torquing backshells. Our adapter tools are configured to mate with specific connector series and shell sizes regardless of the keying arrangement. DMC offers multiple tools used to terminate electromagnetic interference (EMI) bands onto connector assemblies. Jam nut sockets are used for the installation of jam nut connectors and are an excellent choice for OEM assembly areas. Additional tools including wrenches, pliers, and vises extend DMC’s connector assembly capabilities.

View Less

Insertion & Removal Tools

Adapters

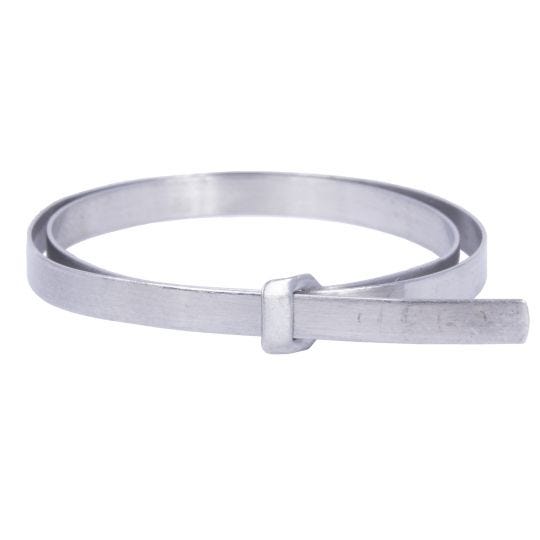

Banding Tools

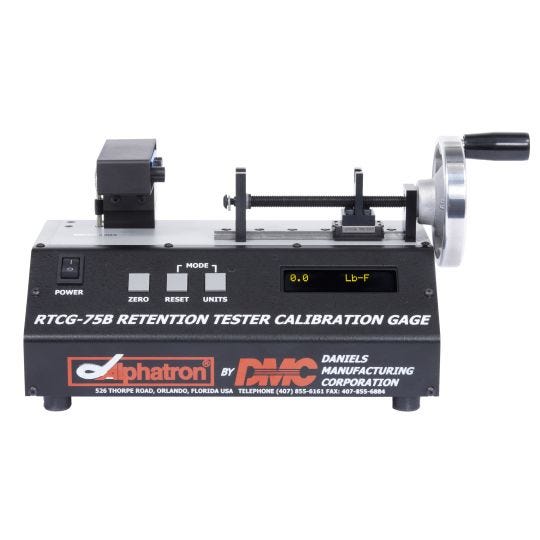

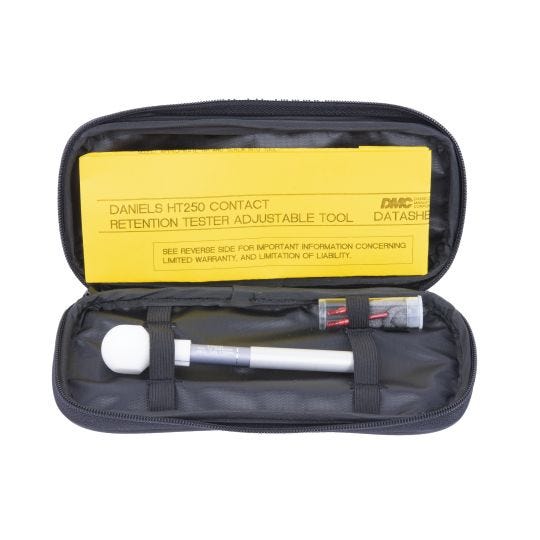

Contact Retention Testers

Jam Nut Tooling

Other Connector Assembly Tools

CONNECTOR ASSEMBLY TOOLS FOR EVERY JOB

DMC offers a variety of crimp tools for different applications including manual, pneumatic, battery, and manual hydraulic. Manual crimp tools are lightweight and compact. Pneumatic tooling is ideal for high-production work environments. Pneumatic tools are known for dependability and adaptability. Battery tools were created to provide a portable and ergonomic means for crimping wire. Many come with the added benefit of data capture and Bluetooth® connectivity. Our manual hydraulic tooling reduces the force needed with conventional hand tools, eliminating hand strain and operator fatigue.

View More (other page)

Insert/Remove

Hold

Torque

Fasten

FIND THE PERFECT MATE

DMC’s adapter tools are designed to hold connectors while backshell accessories are installed. Adapters are available for most military-qualified circular connectors, as well as many commercial connectors.

ADDITIONAL RESOURCES

Adapters Tutorial

Banding Tools Tutorial

Torque Conversion Charts

I/R Tools Tutorial

Connector to Adapter Cross Reference
