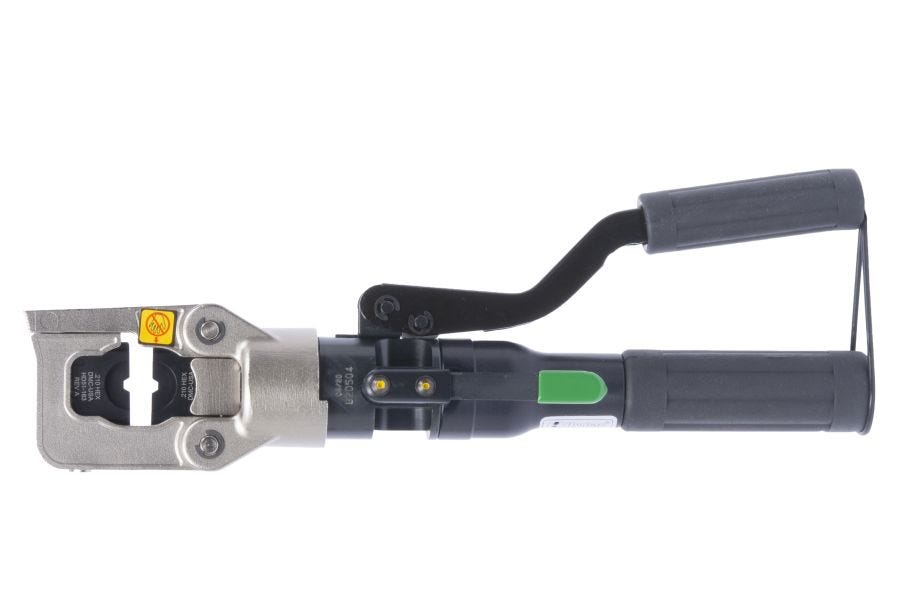

6 Ton Manual Hydraulic Form Crimp Tool for Use with HD51 Dies
  • M5259/5-01 QPL Status Pending
  • Uses HD51 Series Dies
  • WIRE RANGE: #12 to #2/0 AWG
The HD51hydraulic crimp tool is intended to crimp terminals onto copper and aluminum cables with DMC’s HD51 die sets. This small hand-held tool provides 6 tons of crimp force and up to 2/0 AWG conductors in many applications. It also  features an automatic relief valve to prevent over-compression.   The HD51 hydraulic crimper features rugged construction and comfortable handle grips for the best ergonomic advantage. The number of handle closures required to complete the crimp is reduced by the larger and more efficient hydraulic pump system. The DMC1383 tool kit contains the HD51 hand tool and 12 dies for crimping insulated and uninsulated terminals and splices size 8 through 2/0 AWG.   • L x W x H: 14 x 2 x 5 (in) 356 x 50.8 x 127 (mm) • Weight: 4.6 pounds (2.08 kg) • Release lever for relaxing crimp pressure and opening dies • 180º rotating head for ease in confined work areas.   There is also a remote hydraulic head version (Part # XHD51).
More Information
Crimp ApplicationsMachined Contacts, Insulated Terminals, Uninsulated Terminals, Splices, Coax Connectors & HEX, Stamped & Formed Contacts
Crimp Tool TypeHD Tools
Power TypeHydraulic
Shipping Weight11.5
Data Sheet (67.68 kB)
Envelope Drawing (23.60 kB)
Sales Literature (555.00 kB)
