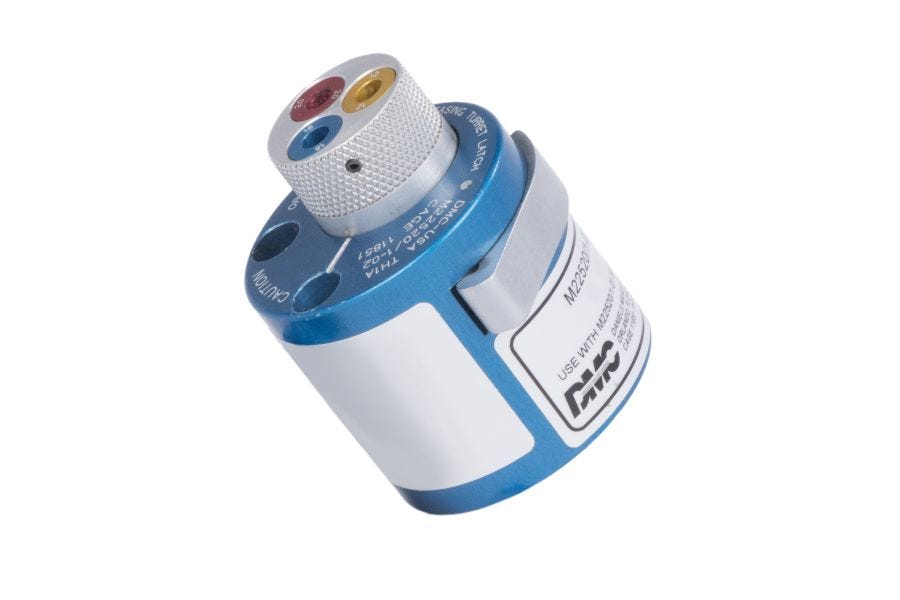

TH4
Turret Head
$136.60
Mil P/N
: M22520/1-03
- TH4® is qualified to AS22520/1*
TH4® is qualified to MIL-DTL-22520/1* and AS22520/1*
M22520/1-03 (TH4) turret head is used with the M22520/1-01 (AF8®) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.
Can also be used with these DMC® Crimp Tools:
WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame
| Qualification | Mil-Spec/AS Qualified |
|---|---|
| Crimp Applications | Machined Contacts |
| Crimp Tool Type | Positioners |
| Positioner | TH |
| NSN | 5120010166621, 5120013358835, 5120000166554 |
| Shipping Weight | 0.25 |
