HDE51C

6 Ton Battery-Powered Form Crimp Tool for Use with HD51 Dies
$5,223.75
Mil P/N
:
QPL Pending
  • M5259/8-01* QPL Pending
  • Uses HD51 Series Dies
  • WIRE RANGE: #8 to #2/0 AWG

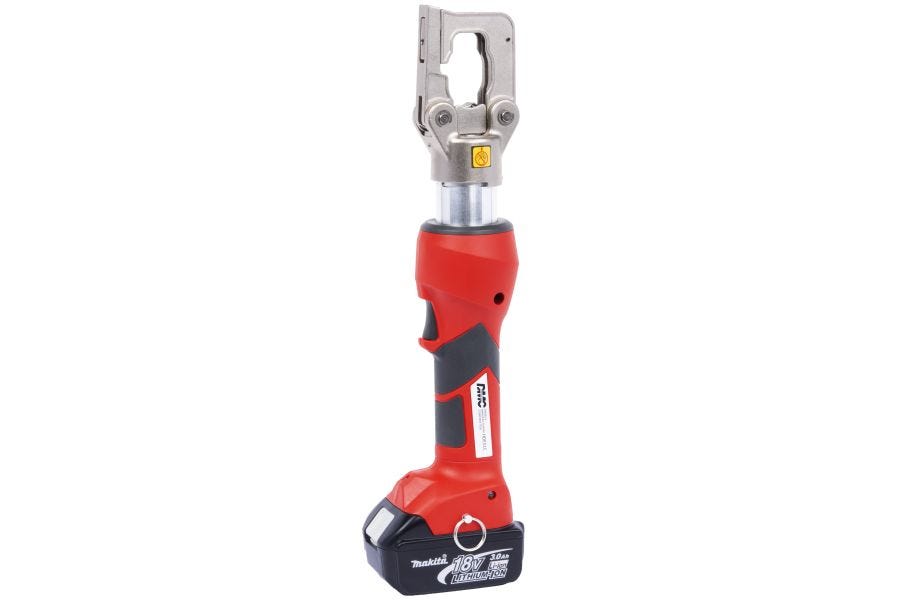

The HDE51C Battery Powered Crimp Tool is a hand held, self contained crimp tool intended to crimp terminals onto copper and aluminum cables with DMC’s HD51 die sets.

The HDE51C provides 6 tons of crimp force and extends the range of DMC’s Battery Powered Crimping Tools to 2/0 AWG conductors in many applications.

SPECIFICATIONS:

• Length:  15.37 inches (391 mm)
• Width:  2.93 inches (75 mm)
• Depth:  4.56 inches (116 mm)
• Weight (with battery):  5.88 lbs (2.7kg)
• Sound Level:  75 db(A) at 1 meter
• Vibration:  <8.2 ft/s2  (2.5 m/s2)
• Hydraulic Oil:  Shell Tellus® T-15 (or equiv)

CRIMP CAPACITIES:

• #8 to #2/0 AWG
• Max. Crimp Force: 6 Tons (58.83 kN)
• Avg. Crimp Time: 4 seconds
• Avg. Crimps per Charge: 100  (varies with size and type of items crimped)
• Avg. Crimps per Charge: 200 (with Extended Life Battery)

BATTERY (P/N: HDE-LI-B):

• 18 VDC, Lithium Ion, 1.5 AMP
• Charging Time:  15 minutes
• 2 batteries included with each new tool

OPTIONAL EXTENDED LIFE BATTERY (P/N: HDE-LI3-B):

• 18 VDC, Lithium Ion, 3.0 AMP
• Charging Time: 30 minutes

VAC POWER ADAPTORS:

• 120 VAC P/N:  HDE-120AC-A
• 240 VAC P/N:  HDE-230AC-A

BATTERY CHARGER:

• 120 VAC P/N:  HDE-LI-120C
• 240 VAC P/N:  HDE-LI-230C


Contact DMC for 230V tools.

More Information
Crimp ApplicationsMachined Contacts, Insulated Terminals, Uninsulated Terminals, Splices, Coax Connectors & HEX, Stamped & Formed Contacts
Crimp Tool TypeHD Tools
Power TypeBattery
Shipping Weight36
File Icon Data Sheet (596.16 kB)
File Icon Envelope Drawing (239.29 kB)
File Icon Sales Literature (2.17 MB)
