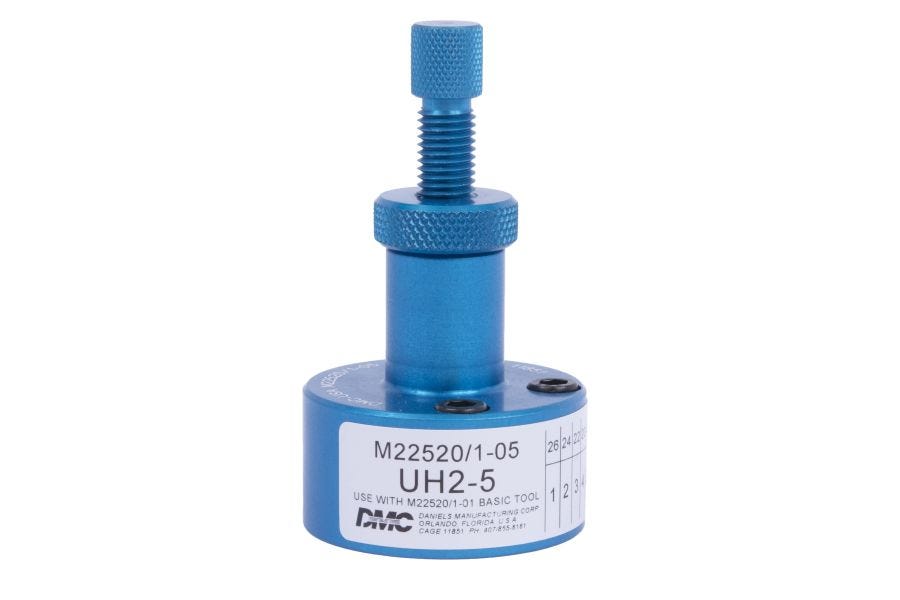

Universal Adjustable Head - use with AF8
Mil P/N
  • Universal Positioner Head - M22520/1-05
  • UH2-5® is qualified to AS22520/1*

UH2-5® is qualified to MIL-DTL-22520/1* and AS22520/1*


M22520/1-05 (UH2-5) turret head is used with the M22520/1-01 (AF8®) tool frame and has an adjustable positioner.

** This adjustable head is ideally suited for lab work and prototype applications.

** Not recommended for production operations

Can also be used with these DMC®  Crimp Tools:

WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame


More Information
QualificationMil-Spec/AS Qualified
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN5120013358583, 5120001653911
Shipping Weight0.18
Data Sheet (937.41 kB)
Envelope Drawing (424.51 kB)
