TSK8504

Twist-Strip® Kit with TSK8500 & All (13) 4 Conductor Die Sets
$4,755.20
  • Mulit-Conductor Outer Jacket Stripper Complete 4 Conductor Kit
  • Cable diameter range from 0.181" to 0.310"

Twist Strip Kit with TSK8500 & All (13) 4 Conductor Die Sets (Cable diameter range from 0.181" to 0.310")



Tool Specifications:


The TS8500 accommodates a variety of multi-conductor cable having diameters from 0.181 inches to 0.310 inches

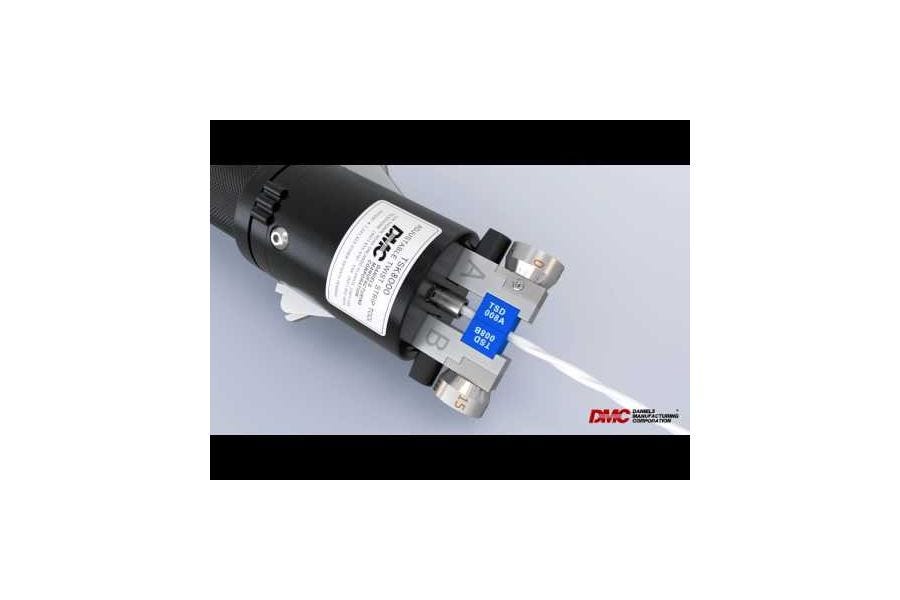

Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed.



Interchangeable stripping dies (with cable track and carbide blade set)

Adjustable blade depth settings

Die Arm Lever Force:  4.4 lbs

Die Arm Lever Length:  1 Inches

Tool Dimensions:  1.75 inches wide, 9.75 inches tall

Cable Max OD:  < 0.310 inches / 7.87 mm

Cable Min OD:  > 0.181 inches / 4.60 mm




Tool Kit includes:


 TSDL4190 - TSK8500 Universal Die Set for .181" - .190" 4 Cond. Cables, Qty. 1


 TSDL4200 - TSK8500 Universal Die Set for .191" - .200" 4 Cond. Cables, Qty. 1


 TSDL4210 - TSK8500 Universal Die Set for .201" - .210" 4 Cond. Cables, Qty. 1


 TSDL4220 - TSK8500 Universal Die Set for .211" - .220" 4 Cond. Cables, Qty. 1


 TSDL4230 - TSK8500 Universal Die Set for .221" - .230" 4 Cond. Cables, Qty. 1


 TSDL4240 - TSK8500 Universal Die Set for .231" - .240" 4 Cond. Cables, Qty. 1


 TSDL4250 - TSK8500 Universal Die Set for .241" - .250" 4 Cond. Cables, Qty. 1


 TSDL4260 - TSK8500 Universal Die Set for .251" - .260" 4 Cond. Cables, Qty. 1


 TSDL4270 - TSK8500 Universal Die Set for .261" - .270" 4 Cond. Cables, Qty. 1


 TSDL4280 - TSK8500 Universal Die Set for .271" - .280" 4 Cond. Cables, Qty. 1



 TSDL4290 - TSK8500 Universal Die Set for .281" - .290" 4 Cond. Cables, Qty. 1


 TSDL4300 - TSK8500 Universal Die Set for .291" - .300" 4 Cond. Cables, Qty. 1


 TSDL4310 - TSK8500 Universal Die Set for .301" - .310" 4 Cond. Cables, Qty. 1




 TSK8500 Tool Kit Assembly, Qty. 1
 TS8500-CIC Cable Diameter Gauge Card
 In an organized, foam lined case

More Information
Wire OD.181 - .310”
# of Conductors4
Wire TypeShielded Cable
Shipping Weight6
Data Sheet (8.05 MB)
Quick Start Guide (3.43 MB)
Envelope Drawing (306.30 kB)
Twist-Strip® (2.54 MB)
