TSK8502

Twist-Strip® Kit with TSK8500 & All (13) 2 Conductor Die Sets
$4,760.20
  • Mulit-Conductor Outer Jacket Stripper Complete 2 Conductor Kit
  • Cable diameter range from 0.181" to 0.310"



Twist Strip Kit with TSK8500 & All (13) 2 Conductor Die Sets (Cable diameter range from 0.181" to 0.310")



Tool Specifications:


The TS8500 accommodates a variety of multi-conductor cable having diameters from 0.181 inches to 0.310 inches


Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed.



Interchangeable stripping dies (with cable track and carbide blade set)

Adjustable blade depth settings

Die Arm Lever Force:  4.4 lbs

Die Arm Lever Length:  1 Inches

Tool Dimensions:  1.75 inches wide, 9.75 inches tall

Cable Max OD:  < 0.310 inches / 7.87 mm

Cable Min OD:  > 0.181 inches / 4.60 mm




Tool Kit includes:


 TSDL2190 - TSK8500 Universal Die Set for .181" - .190" 2 Cond. Cables, Qty. 1


 TSDL2200 - TSK8500 Universal Die Set for .191" - .200" 2 Cond. Cables, Qty. 1


 TSDL2210 - TSK8500 Universal Die Set for .201" - .210" 2 Cond. Cables, Qty. 1


 TSDL2220 - TSK8500 Universal Die Set for .211" - .220" 2 Cond. Cables, Qty. 1


 TSDL2230 - TSK8500 Universal Die Set for .221" - .230" 2 Cond. Cables, Qty. 1


 TSDL2240 - TSK8500 Universal Die Set for .231" - .240" 2 Cond. Cables, Qty. 1


 TSDL2250 - TSK8500 Universal Die Set for .241" - .250" 2 Cond. Cables, Qty. 1


 TSDL2260 - TSK8500 Universal Die Set for .251" - .260" 2 Cond. Cables, Qty. 1


 TSDL2270 - TSK8500 Universal Die Set for .261" - .270" 2 Cond. Cables, Qty. 1


 TSDL2280 - TSK8500 Universal Die Set for .271" - .280" 2 Cond. Cables, Qty. 1



 TSDL2290 - TSK8500 Universal Die Set for .281" - .290" 2 Cond. Cables, Qty. 1


 TSDL2300 - TSK8500 Universal Die Set for .291" - .300" 2 Cond. Cables, Qty. 1


 TSDL2310 - TSK8500 Universal Die Set for .301" - .310" 2 Cond. Cables, Qty. 1




 TSK8500 Tool Kit Assembly, Qty. 1
 TS8500-CIC Cable Diameter Gauge Card

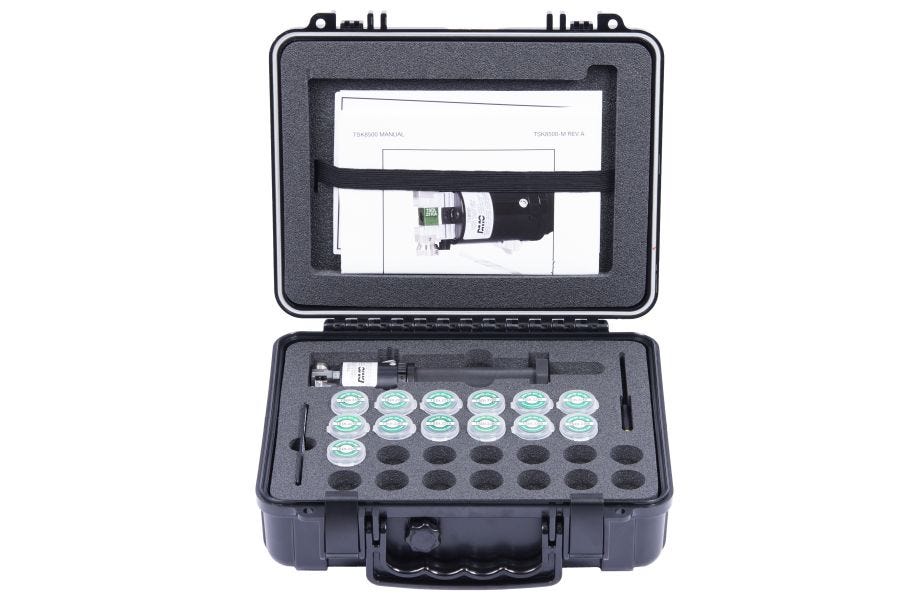

 In an organized, foam lined case

More Information
Wire OD.181 - .310”
# of Conductors2
Wire TypeShielded Cable
Shipping Weight6
