TSK8003D

Twist-Strip® Kit with All (10) 3 Conductor Die Sets (Dies Only, Tool Not Included)
$2,388.80
  • All Three Conductor Dies Only, Tool Not Included
  • Cable diameter range from 0.081" to 0.180"

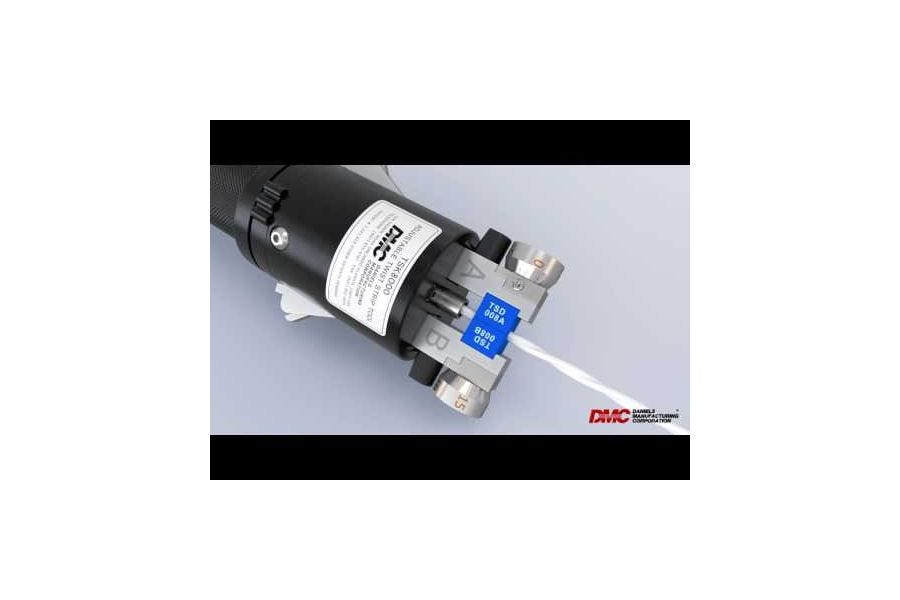

Twist Strip Kit with All (10) 3 Conductor Die Sets (Cable diameter range from 0.081” to 0.180”) (Dies Only, Tool Not Included)



Features:
 Rugged lightweight construction
 Adjustable blade depth settings
 Micrometer style blade adjustment knobs.
 Removable and replaceable die sets
 Die Sets have a contoured cable track
 Adjustable cable strip length
 Locking tool arms
 Locking head
 Free rotating core
 Positive die closure



Tool Specifications:
 The TSK8000 accommodates a variety of multi-conductor cable having diameters from 0.0625 inches to 0.180 inches
 Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed


Interchangeable stripping dies (with cable track and carbide blade set)
Adjustable blade depth settings
Tool Weight:  .81 lbs
Shipping Weight:  6 lbs (includes entire tool and accessories in foam lined case)
Die Arm Lever Force:  4.4 lbs
Die Arm Lever Length:  1 inches
Tool Dimensions:  1.75 inches wide, 9.75 inches tall
Cable Max OD: < 0.180 inches / 4.75 mm
Cable Min OD: > 0.0625 incehs / 1.59 mm


Tool Kit includes:
 TSD3090 - TSK8000 Universal Die Set for .081" - .090" 3 Cond. Cables, Qty. 1
 TSD3100 - TSK8000 Universal Die Set for .091" - .100" 3 Cond. Cables, Qty. 1
 TSD3110 - TSK8000 Universal Die Set for .101" - .110" 3 Cond. Cables, Qty. 1
 TSD3120 - TSK8000 Universal Die Set for .111" - .120" 3 Cond. Cables, Qty. 1
 TSD3130 - TSK8000 Universal Die Set for .121" - .130" 3 Cond. Cables, Qty. 1
 TSD3140 - TSK8000 Universal Die Set for .131" - .140" 3 Cond. Cables, Qty. 1
 TSD3150 - TSK8000 Universal Die Set for .141" - .150" 3 Cond. Cables, Qty. 1
 TSD3160 - TSK8000 Universal Die Set for .151" - .160" 3 Cond. Cables, Qty. 1
 TSD3170 - TSK8000 Universal Die Set for .161" - .170" 3 Cond. Cables, Qty. 1
 TSD3180 - TSK8000 Universal Die Set for .171" - .180" 3 Cond. Cables, Qty. 1
 TS8000 CIC Cable Diameter Gauge Card
 In an organized, foam lined case

More Information
Wire OD.081 - .180”
# of Conductors3
Wire TypeShielded Cable
Shipping Weight5.72
Data Sheet (8.05 MB)
Quick Start Guide (4.51 MB)
Twist-Strip® (2.54 MB)
