TSK8002

Twist-Strip® Kit with TSK8000 & All (10) 2 Conductor Die Sets
$3,662.69
Mil P/N
:
M32610/01-23
  • Cable diameter range from 0.081" to 0.180"
  • MIL-SPEC: MIL-DTL-32610
  • NSN 5110-01-677-9343

Twist Strip Kit with TSK8000 & All (10) 2 Conductor Die Sets (Cable diameter range from 0.081" to 0.180")

NSN 5110-01-677-9343


Features:
 Rugged lightweight construction
 Adjustable blade depth settings
 Micrometer style blade adjustment knobs.
 Removable and replaceable die sets
 Die Sets have a contoured cable track
 Adjustable cable strip length
 Locking tool arms
 Locking head
 Free rotating core
 Positive die closure


Tool Specifications:
The TS8000 accommodates a variety of multi-conductor cable having diameters from 0.0625 inches to 0.180 inches
Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed

Interchangeable stripping dies (with cable track and carbide blade set)

Adjustable blade depth settings

Tool Weight:  .81 lbs

Shipping Weight:  6 lbs (includes entire tool and accessories in foam lined case)

Die Arm Lever Force:  4.4 lbs

Die Arm Lever Length:  1 Inches

Tool Dimensions:  1.75 inches wide, 9.75 inches tall

Cable Max OD:  < 0.180 inches / 4.75 mm

Cable Min OD:  > 0.0625 inches / 1.59 mm


Tool Kit includes:
 TSD2090 - TSK8000 Universal Die Set for .081" - .090" 2 Cond. Cables, Qty. 1
 TSD2100 - TSK8000 Universal Die Set for .091" - .100" 2 Cond. Cables, Qty. 1
 TSD2110 - TSK8000 Universal Die Set for .101" - .110" 2 Cond. Cables, Qty. 1
 TSD2120 - TSK8000 Universal Die Set for .111" - .120" 2 Cond. Cables, Qty. 1
 TSD2130 - TSK8000 Universal Die Set for .121" - .130" 2 Cond. Cables, Qty. 1
 TSD2140 - TSK8000 Universal Die Set for .131" - .140" 2 Cond. Cables, Qty. 1
 TSD2150 - TSK8000 Universal Die Set for .141" - .150" 2 Cond. Cables, Qty. 1
 TSD2160 - TSK8000 Universal Die Set for .151" - .160" 2 Cond. Cables, Qty. 1
 TSD2170 - TSK8000 Universal Die Set for .161" - .170" 2 Cond. Cables, Qty. 1
 TSD2180 - TSK8000 Universal Die Set for .171" - .180" 2 Cond. Cables, Qty. 1

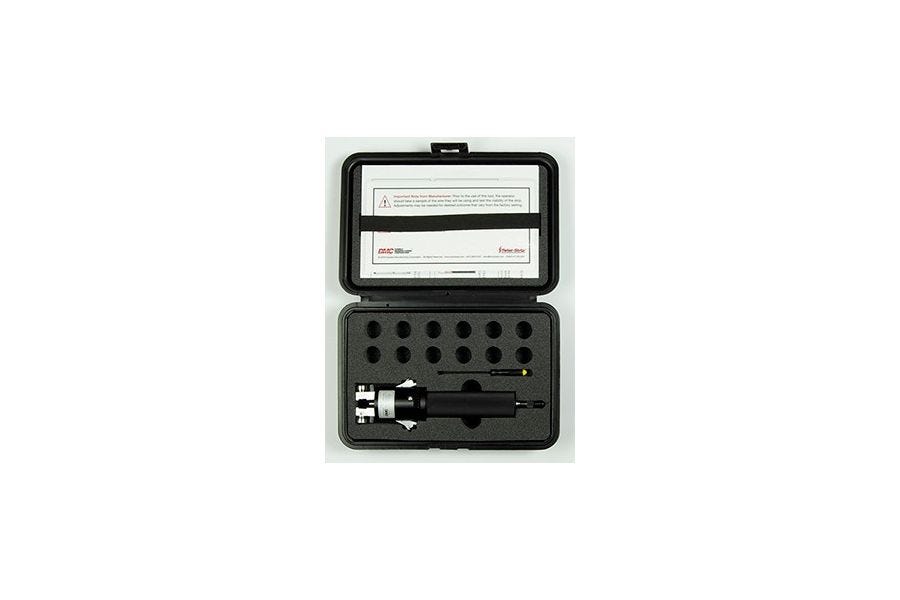

 TSK8000 - Tool Kit Assembly, Qty. 1
 TS8000 CIC Cable Diameter Gauge Card
 In an organized, foam lined case

More Information
QualificationMil-Spec/AS Qualified
Wire OD.081 - .180”
# of Conductors2
Wire TypeShielded Cable
Shipping Weight5.72
Data Sheet (8.05 MB)
Quick Start Guide (4.51 MB)
Envelope Drawing (331.21 kB)
Twist-Strip® (2.54 MB)
