TSK8001

Twist-Strip® Kit with TSK8000 & All (12) 1 Conductor Die Sets
$4,137.52
  • Cable diameter range from 0.061" to 0.180"

Twist Strip Kit with TSK8000 & All (12) 1 Conductor Die Sets (Cable diameter range from 0.061” to 0.180”)

The DMC Twist-Strip product line gives the user a system with the maximum capabilities, while keeping the system portable, self-contained, affordable, and ergonomic. The precise blade adjustment, zero friction ball bearing design, articulating/locking arms, and changeable dies makes the Twist-Strip very user-friendly and efficient when performing the difficult task of cable preparation.

Adjustable (New Feature)
The TSK8000 has adjustable blades that allow the tool to accommodate variances in the cable. Varying jacket thickness and cable diameter are two examples of common differences you may see in different lots of the same cable. Simple adjustments allow the user to set the cutting blades for a deeper or shallower score of the cable jacket.

Precise
A cable track precisely machined into each die set creates a controlled rotation of the dies/blades as the cable is moved along the cable. A simple 90 degree bend of the cable results in the jacket halves separating for removal, reducing the amount of force needed to remove the jacket.

Consistent
The repeatable function of the tool reduces operator error and is up to 3 to 5 times faster than conventional methods.

Features:
 Rugged lightweight construction
 Adjustable blade depth settings
 Micrometer style blade adjustment knobs.
 Removable and replaceable die sets
 Die Sets have a contoured cable track
 Adjustable cable strip length
 Locking tool arms
 Locking head
 Free rotating core
 Positive die closure

Tool Specifications:
 The TSK8000 accommodates a variety of multi-conductor cable having diameters from 0.0625 inches to 0.180 inches
 Strips the outer jacket of shielded twisted multi-conductor, and round cable
 End stripping or window stripping of cable as needed
Interchangeable stripping dies (with cable track and carbide blade set)
 Adjustable blade depth settings
 Tool Weight:  .81 lbs
 Shipping Weight:  6 lbs (includes entire tool and accessories in foam lined case)
 Die Arm Lever Force:  4.4 lbs
 Die Arm Lever Length:  1 inches
 Tool Dimensions:  1.75 incehs wide, 9.75 inches tall
 Cable Max OD:  < 0.180 inches / 4.75 mm
 Cable Min OD:  > 0.0625 inches / 1.59 mm

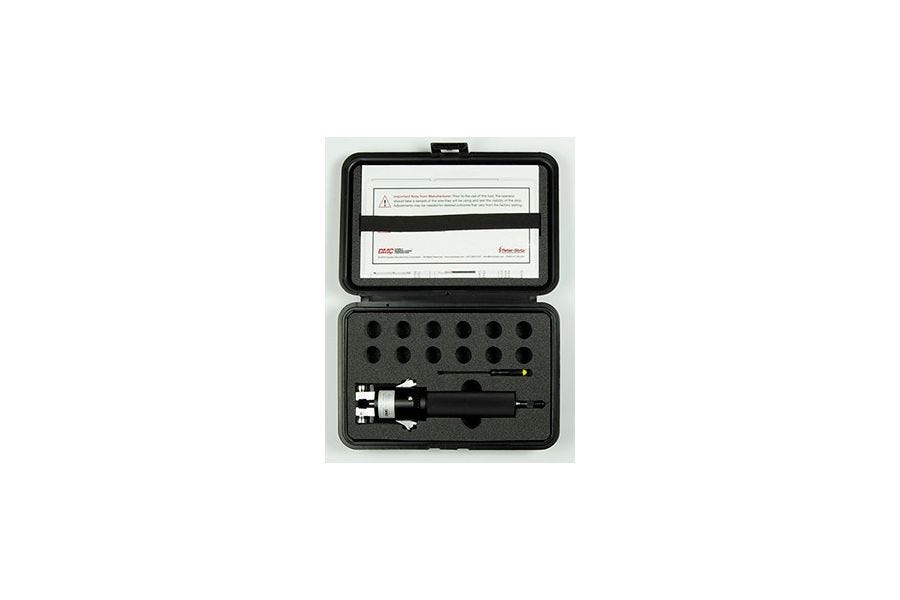

Tool Kit includes:
 TSD1070 - TSK8000 Universal Die Set for .061" - .070" 1 Cond. Cables, Qty. 1
 TSD1080 - TSK8000 Universal Die Set for .071" - .080" 1 Cond. Cables, Qty. 1
 TSD1090 - TSK8000 Universal Die Set for .081" - .090" 1 Cond. Cables, Qty. 1
 TSD1100 - TSK8000 Universal Die Set for .091" - .100" 1 Cond. Cables, Qty. 1
 TSD1110 - TSK8000 Universal Die Set for .101" - .110" 1 Cond. Cables, Qty. 1
 TSD1120 - TSK8000 Universal Die Set for .111" - .120" 1 Cond. Cables, Qty. 1
 TSD1130 - TSK8000 Universal Die Set for .121" - .130" 1 Cond. Cables, Qty. 1
 TSD1140 - TSK8000 Universal Die Set for .131" - .140" 1 Cond. Cables, Qty. 1
 TSD1150 - TSK8000 Universal Die Set for .141" - .150" 1 Cond. Cables, Qty. 1
 TSD1160 - TSK8000 Universal Die Set for .151" - .160" 1 Cond. Cables, Qty. 1
 TSD1170 - TSK8000 Universal Die Set for .161" - .170" 1 Cond. Cables, Qty. 1
 TSD1180 - TSK8000 Universal Die Set for .171" - .180" 1 Cond. Cables, Qty. 1
 TSK8000 - Tool Kit Assembly, Qty. 1
 TS8000 CIC Cable Diameter Gauge Card
 In an organized, foam lined case

More Information
Wire OD.061 - .180”
# of Conductors1
Wire TypeShielded Cable
Shipping Weight5.82
Data Sheet (8.05 MB)
Quick Start Guide (4.51 MB)
Envelope Drawing (331.21 kB)
Twist-Strip® (2.54 MB)
