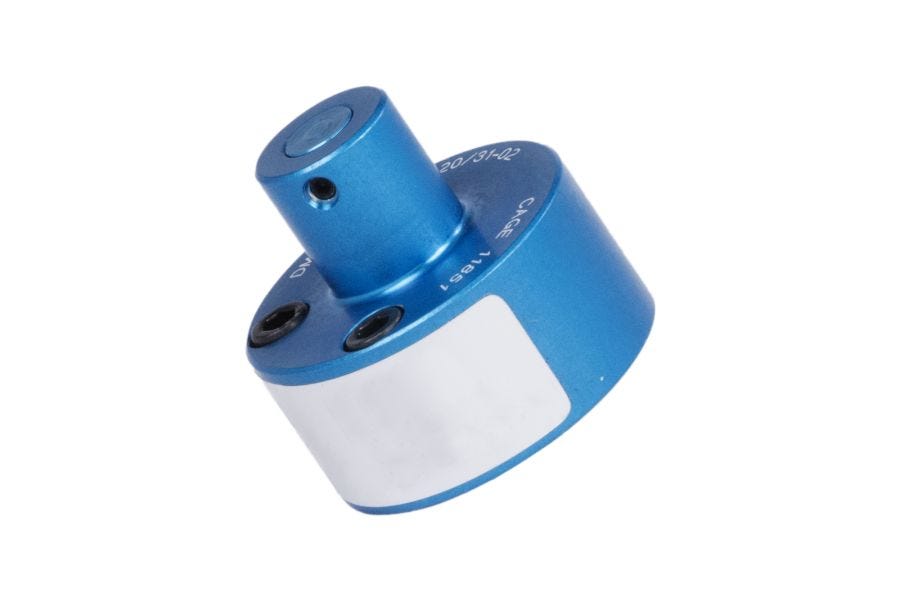

TP651

Single Position Head
$89.01
Mil P/N
:
M22520/1-17
  • Qualified to AS22520/1*

Qualified to MIL-DTL-22520/1* and AS22520/1*



M22520/1-17 (TP651) single position head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.



Can also be used with these DMC Crimp Tools:

WA27F Pneumatic Crimp Tool Frame

AFE8B Battery Crimp Tool Frame

More Information
QualificationMil-Spec/AS Qualified
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
PositionerTP
NSN / Associated #s5120010856103, 5120013358591
Shipping Weight0.2
Envelope Drawing (369.75 kB)
