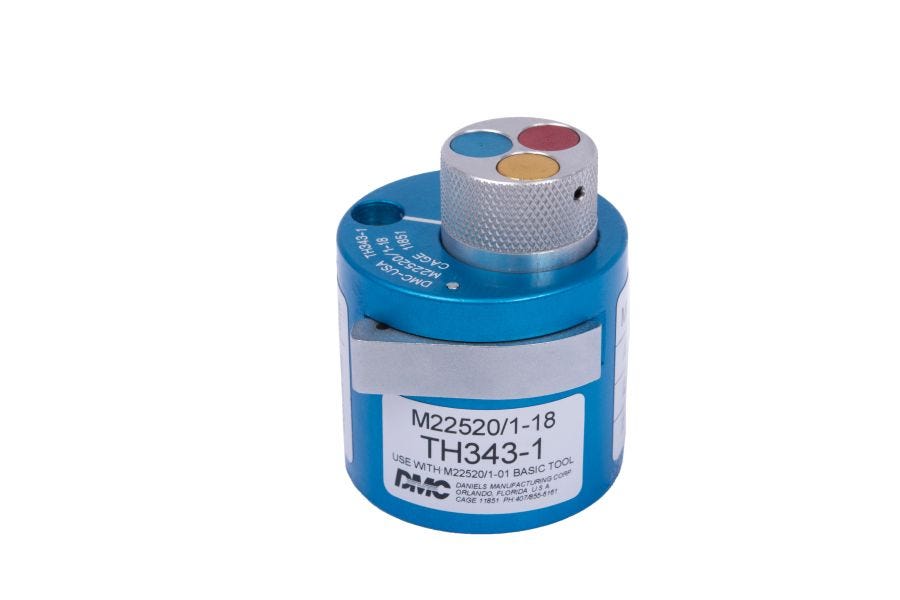

Turret Head

M22520/1-18 (TH343-1)  turret head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.

Can also be used with these DMC Crimp Tools:

WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame

More Information
QualificationMil-Spec/AS Qualified
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
Shipping Weight0.25
Envelope Drawing (416.54 kB)
