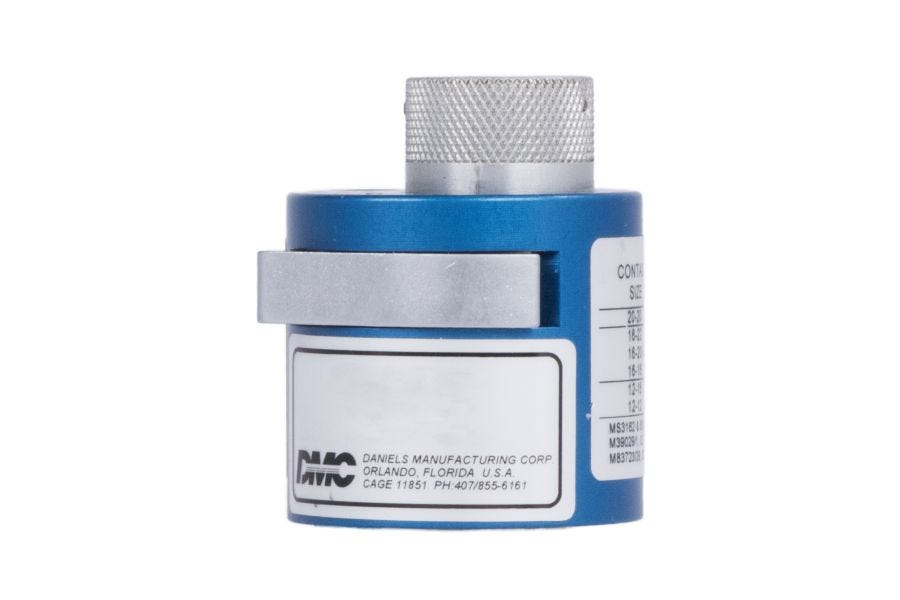

Turret Head

This turret head is used with the M22520/1-01, AF8 tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.

Can also be used with these DMC Crimp Tools:

WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame

More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN5120001399230, 5120011759172, 5120013619699
Shipping Weight0.25
Envelope Drawing (32.77 kB)
