Turret Head
Mil P/N
  • TH1A® is qualified to AS22520/1*
  • M22520/1-02

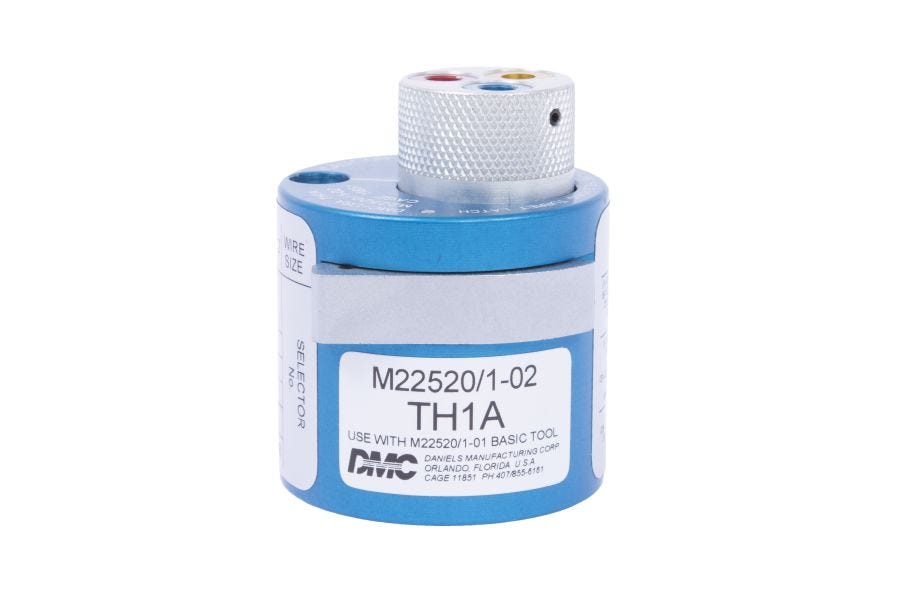

M22520/1-02 (TH1A®)  turret head is used with the M22520/1-01 (AF8®) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.

Qualified to MIL-DTL-22520/1* and AS22520/1*

Can also be used with the WA27F pneumatic crimp tool.

More Information
QualificationMil-Spec/AS Qualified
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN5120013358834, 3436013415418, 5120000166382
Shipping Weight0.25
Envelope Drawing (556.89 kB)
