Turret Head
Mil P/N
  • TH163® is qualified to AS22520/1*

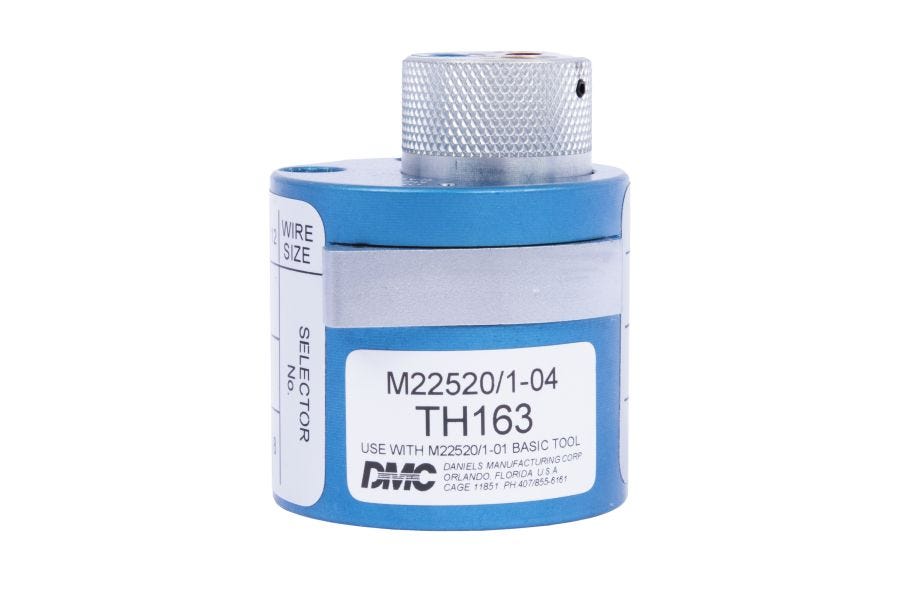

M22520/1-04 (TH163®)  turret head is used with the M22520/1-01 (AF8®) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.

Qualified to MIL-DTL-22520/1* and AS22520/1*

TH163™ turret head can also be used with these DMC® Crimp Tools:

  • WA27F Pneumatic Crimp Tool Frame
  • AFE8B Battery Crimp Tool Frame
More Information
QualificationMil-Spec/AS Qualified
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN5120013358836, 3436013415419, 5120000167582, 5120014783353
Shipping Weight0.25
Envelope Drawing (497.79 kB)
