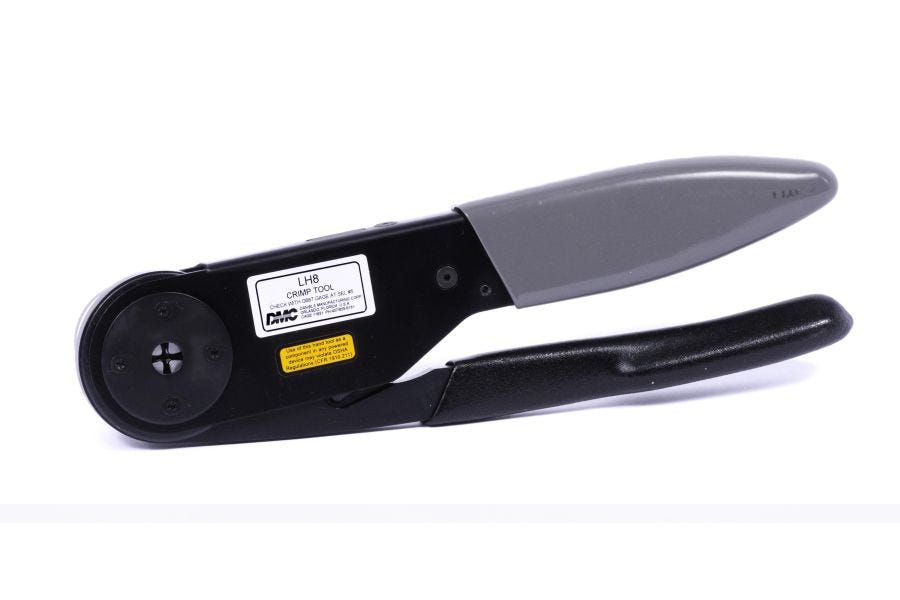

Crimp Tool with LH281 Turret Head for Burndy YHMM Series Contacts

The LH8 tool produces both conductor and insulation crimps simultaneously on Burndy YHMM series contacts used in many aircraft wiring systems (Boeing contact designations BACC47DE4 & BACC47DE5). It is functionally comparable to the Burndy M10S-1 crimp tool with S1 Die & SL-53 Stop Bushing (combination).

The tool comes with a dedicated turret head positioner, LH281. It is gaged with gages G687 for the conductor & G743 for the insulation.  The tool is approximately 93 ⁄4""x 21 ⁄2"" x 11 ⁄4""and weighs 15 oz.

The pneumatic power version of this tool is the WA27LH.

More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypeIndent Tools
Power TypeManual
Shipping Weight1.64
Data Sheet (853.98 kB)
Envelope Drawing (32.04 kB)
