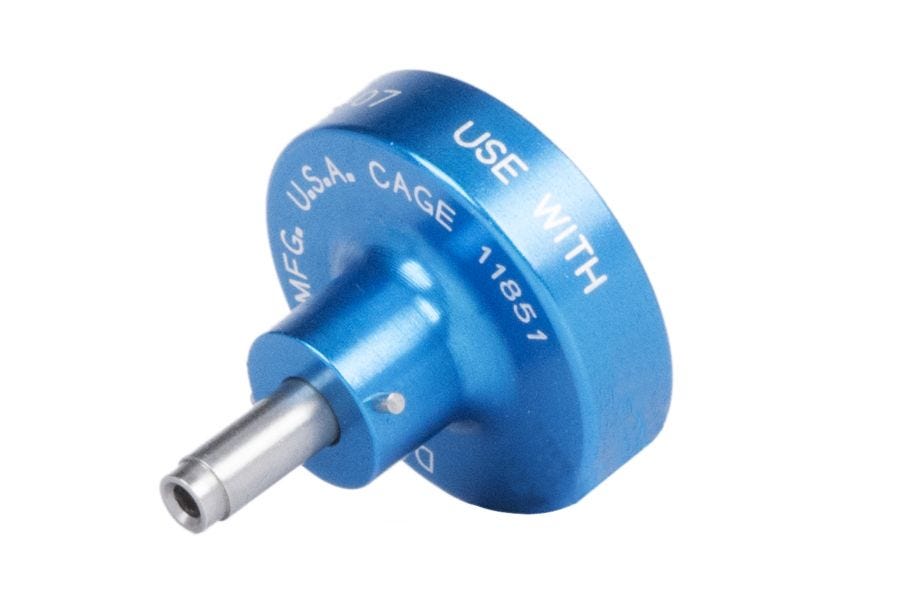

This positioner is used with the M22520/2-01, AFM8 tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Contacts serviced:

Cannon 030-8542-001
Cannon 030-2464-014
Cannon L750-20HDL
Cannon L3198-20HDL

Can be used with these DMC Crimp Tools:

AFM8 Hand Crimp Tool Frame
WA22 Pneumatic Crimp Tool Frame
AFME8B Battery Crimp Tool Frame

More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN5120001569199, 5120013619624
Shipping Weight0.05
