4 Ton Hydraulic Crimp Tool for Use with HD36 Dies

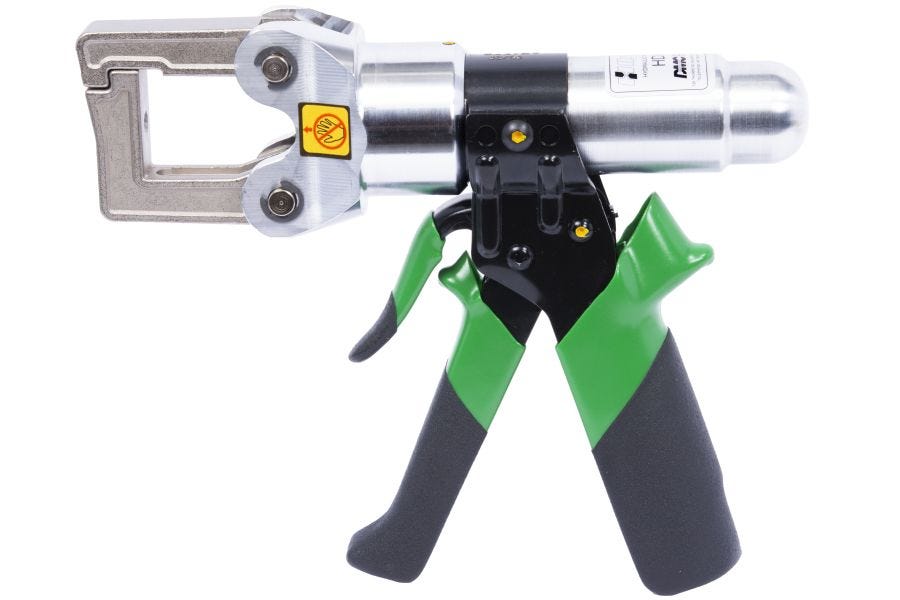

HD36 Hydraulic Crimper is a combination of a lightweight design and the precise application of 4 tons force to crimp power contacts too large for conventional hand tools. This tool is designed to accept the entire family of D36 dies for crimping terminals, lugs or any other special applications.


The 4 ton crimp force is achieved through multiple actuations of the tool handle. The automatic relief valve “clicks” audibly when the proper crimp force has been applied to prevent over-compression. The tool head also rotates 360 degrees for easy accessibility in confined working areas. The hand tool is 8.5 inches long, weighs only 3.3 lbs, and is operated with one hand.


If your application requirement is not already covered by one of our standard dies, our engineering department will be pleased to discuss a design to suit your needs, consult DMC for details.
• 4 tons of die force
• Interchangeable die sets
• Automatic relief valve to prevent over-compression
• Release lever for relaxing crimp pressure and opening dies mid-cycle
• 180 degree rotating head for ease in confined work areas

More Information
Crimp ApplicationsMachined Contacts, Insulated Terminals, Uninsulated Terminals, Splices, Coax Connectors & HEX, Stamped & Formed Contacts
Crimp Tool TypeHD Tools
Power TypeHydraulic
Shipping Weight5.6
Data Sheet (903.58 kB)
Sales Literature (399.87 kB)
