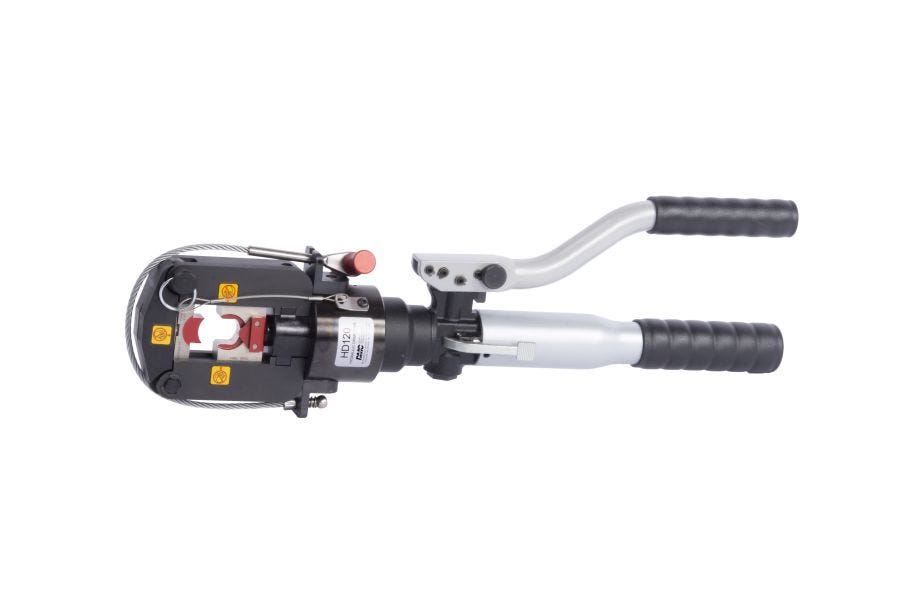

12 Ton Large Gage Hydraulic Crimp Tool
  • Hand Actuated Hydraulic Crimp Tool
  • Interchangeable MS23002-xx Dies (for insulated lugs)
  • Interchangeable MS90485-xx Dies (for un-insulated lugs)
  • Interchangeable MS25442-xx Dies (for aluminum lugs)

The HD120 is a hand-actuated hydraulic crimp tool designed to use interchangeable MS23002-XX dies (for insulated lugs), MS90485-XX dies (for un-insulated lugs) and MS25442-XX dies (for aluminum lugs).  This heavy-duty crimper delivers 12 tons of die force necessary to crimp large conductors. The two-stage pump minimizes the number of handle closures needed to complete the crimp and the padded handles provide a comfortable advantage. The tool’s hydraulic pump is filled with biodegradable hydraulic fluid at the factory and does not need to be bled or primed.

The HD120 is a hand-operated hydraulic equivalent to the Mil-Qualified, TBHD1M (MS25441-1) remote hydraulic crimp head. DMC also offers a battery version of this tool, HDE120B. All dies are able to be interchanged throughout these 3 tools.

  • 360 degrees rotating head
  • Automatic relief valve
  • Crimp force: 12 tons
  • Length: 21.3 inches
  • Weight: 14.6 pounds
  • Hydraulic Oil :  .1pt (50ml) Biodegradable Hydraulic Fluid
  • Crimping Range:  8 AWG to 4/0 AWG
More Information
Crimp ApplicationsInsulated Terminals, Uninsulated Terminals, Splices
Crimp Tool TypeHD Tools
Power TypeHydraulic
Shipping Weight52
Envelope Drawing (135.08 kB)
Data Sheet (142.58 kB)
Sales Literature (351.05 kB)
