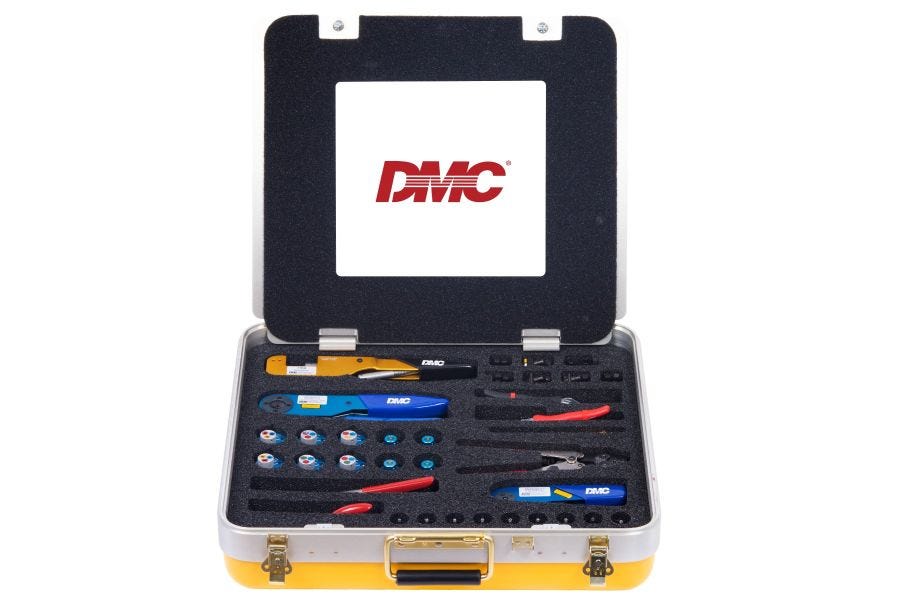

The DMC871 kit contains the tooling to connector, contact, and terminal cross-reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.
DMC CONNECTOR COVERAGE
Aero-E - AE55
AMP - TNC, BNC, N & NIC-66
Bendix - PT-CE & BT-M
Collins Radio - Thin Line
Deutsch - 815, AFD, CTJ & DBA, DL
Flight - FF
ITT Cannon - DPXNA, DPXNE, BKAD/E/F, D*MA, FRF/FVF, FRA/FVA, DPAMA, DPXMA, CA-KE, D*M
Matrix - 944, 981, MT & MB91, MB92, MB93
Raychem - Mini Seal Splice
SAE-AS50151 - 3450
SAE-AS7928 - Splices & Terminals
SAE-AS81511 - 3 & 4
SAE-AS81659 - 2
MIL-DTL-26482 - 2
MIL-DTL-38999 - 1, 2, 3, 4
MIL-PRF-39012 - C & N
MIL-DTL-83723 - 3
| Aircraft/Vehicle Manufacturer | Gulfstream |
|---|---|
| # of Cases | 1 |
| Case Material | High Performance Plastic |
| Case Type | Carry Case |
| NSN / Associated #s | 5935014350858 |
| Shipping Weight | 48 |
