DMC769

Boeing 737 Wiring System Maintenance Kit

DMC769 Wiring System Service Kit for the Boeing 737-200, -300, -400, -500 Series Aircraft



DMC769 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the Boeing 737



DMC769 CONNECTOR COVERAGE:

AMP    AMP-TAB, AD/AM
Amphenol Aerospace/Bendix    48, (MIL-DTL-26500), Special Wire Splice, 84 Series BNC Series, PT, PT-SE, Pygmy Series
Burndy    Smooth Bantam, L Series
Cinch Connector    Nuline Connectors C48 Series, CN0967 Series, C0909A Series
Deutsch    DS Series
Fenwal    Fire Detector Connectors
ITT Cannon    BKA Series, D*MA Series, DPAMA, DPD, DPD*MB, DPE, DPX*MA, FRF, XLR
Kings Electronics    KD, KN, KC Series, BNC Type, N, C
Matrix Science    MT Series, Specials, TT30K, M83723 Series III
Pyle National    Firewall Connectors
Souriau    S600 (ARINC 600)
Switchcraft    2J
Transtechnology Corp.    FC3400 Series (AS50151), 3400 Series
Walter Kidde    Fire Detection Connectors
AS7928    Insulated/Uninsulated Terminals
AS81824    Environmental Splices
MIL-DTL-26482    Series 1
MIL-DTL-26500    Firewall Connectors
Military Standard    MS/AN



TOOL KIT CONFIGURATION:

Type of Case:  Portable
Number of Cases:  1
Color:  Yellow
Type of Construction:  Fiberglass/Aluminum
Application:  Boeing 737-200, -300, -400, -500 Series
Coverage:  Airframe Power Connectors, Terminals size 12 AWG and Smaller, Coaxial Connectors
Type of Inserts:  Unicellular Polyethylene Foam with Die Cut Tool Cavities

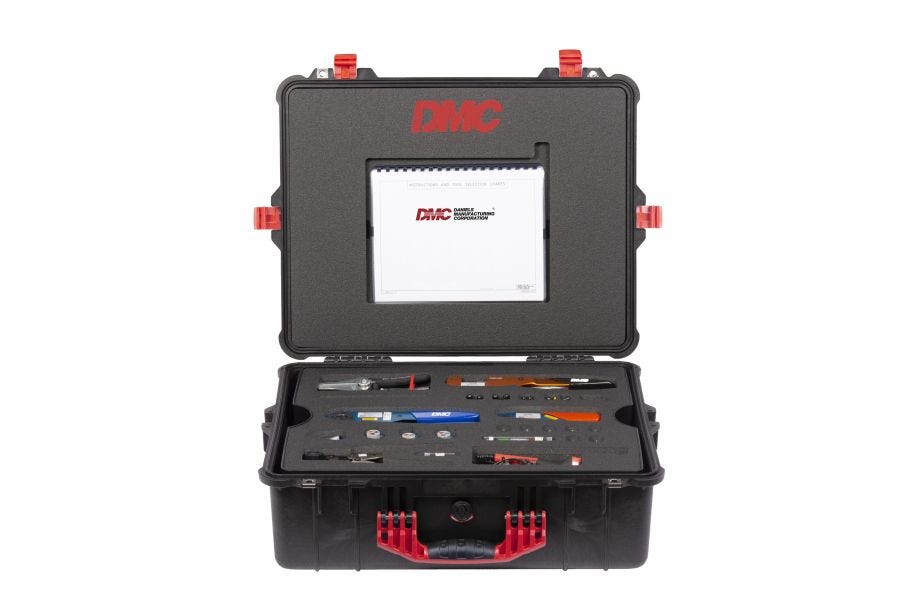

Tool kit supplied in an environmentally sealed fiberglass case and includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool Selection Charts.

More Information
Aircraft/Vehicle ManufacturerBoeing
# of Cases1
Case MaterialHigh Performance Plastic
Case TypeCarry Case
Shipping Weight48
