DMC519

Airbus A318, A319, A320, A321, A330, A340 Wiring System Maintenance Kit

The DMC519 kit contains the tooling to connector, contact and terminal cross reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.

Since these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service. Tool kit supplied in 1 environmentally sealed Ultra High Impact Copolymer case and includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool Selection Charts.

DMC519 CONNECTOR COVERAGE:

Air LB Junction Modules, Relay Sockets
AMP HD-22, RME Series, RF Coaxial,
PIDG Insulated Terminals/Splices, Solistrand Uninsulated Terminals/Splices
Connectral 208 Series, Relay Sockets
Deutsch DBA, FDBA, 992, 983
ITT Cannon BKAE/D, DPX, DPXMA, PVW, HTAMF Series
Jupiter JAR, JA, JAM Series
Matrix Science MB, MB92, NSA93815 Series
Radiall NSX, DSX Series
Socapex RJT, JT Series
Souriau 8525, 8526, S600, 8533, 8665, 8T, 8559
Arinc 600 Rack and Panel
MIL-C-26500 Firewall Connectors

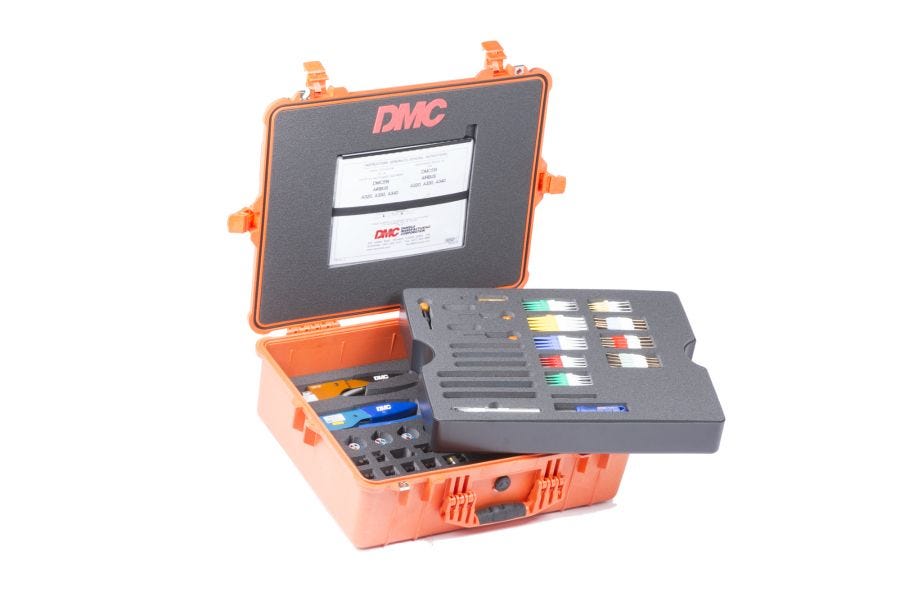

TOOL KIT CONFIGURATION
Type of Case:  Portable
Number of Cases:  1
Color:  Orange
Type of Construction:  Ultra High Impact Copolymer
Application:  A318, A319,A 320, A321, A330, A340
Coverage: Airframe Power Connectors, Terminals size 12 AWG and Smaller, Coaxial Connectors
Type of Inserts:  Unicellular Polyethylene Foam with Die Cut Tool Cavities


More Information
Aircraft/Vehicle ManufacturerAirbus
# of Cases1
Case MaterialHigh Performance Plastic
Case TypeCarry Case
Shipping Weight36
Sales Literature (3.06 MB)
