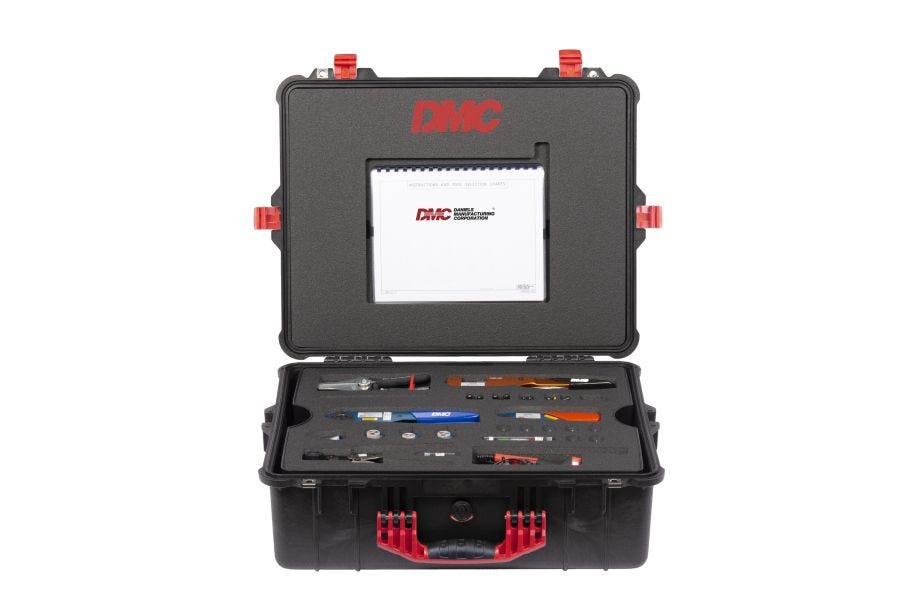

DMC333 kit contains the tooling to connector, contact and terminal cross-reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.
DMC CONNECTOR COVERAGE
AMP HD-22, RME Series, PIDG/Solistrand Insulated/Uninsulated Terminals/Splices, RF Coaxial
Deutsch DBA, FDDA, 992 Series
Deutsch Relays Relay Sockets
Interconnectron FC, FZH Series
ITT Cannon CA-KE, DPAMA, DPDMA, DPX*MA, PVW Series
ITT Gremar RF Coaxial
Souriau 852, 892, 8126, 8127, 8128, 8129, 8130, 8131 Series
McGraw-Edison Fire Detection Connectors
NSA 938 Series
AS7928 Insulated Terminals/Splices
AS50151 3100 Series
MIL-DTL-26482 Series 1, 2
MIL-DTL-26500 Firewall Connectors
| Aircraft/Vehicle Manufacturer | Airbus |
|---|---|
| # of Cases | 1 |
| Case Material | High Performance Plastic |
| Case Type | Carry Case |
| Shipping Weight | 39 |
