DMC274 AFM8 (M22520/2-01) Tool Kit for Electrical Connectors and Wiring Systems
The DMC274 kit supplies your staff with the information and accessories necessary to use your AFM8 (M22520/2-01).
Illustrated operating instructions are included for the AFM8 and accessories.
The AFM8 gives a Mil-Standard 4/8 indent crimp, which assures maximum tensile strength. The cycle controlled precision ratchet assures consistently accurate crimps every time. The tool frame has a built-in 8 step selector knob for ease in dialing the correct crimp depth setting for the wire being used.

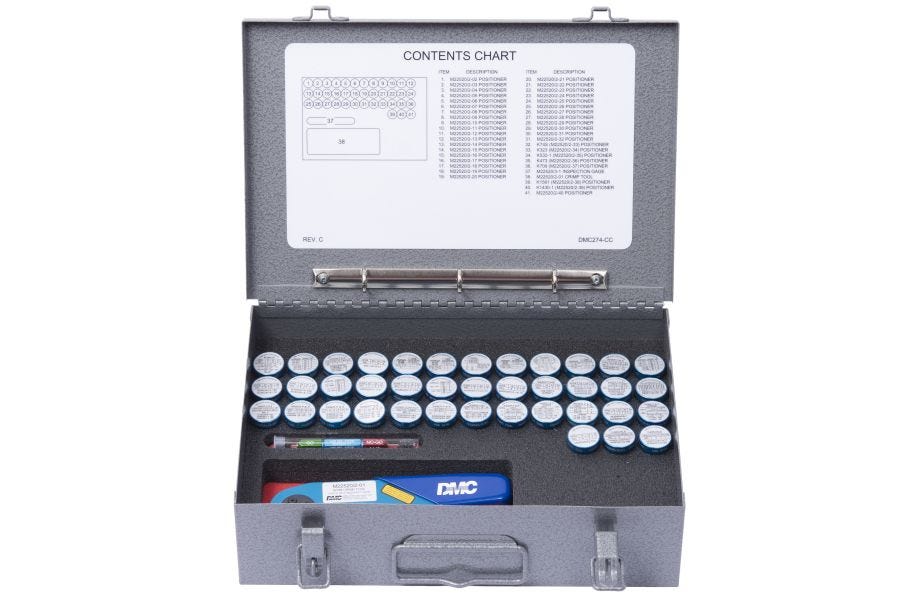

DMC274 TOOL AND ACCESSORY LIST:
1 AFM8 Crimp Tool
36 M22520/2 Positioners
1 Inspection Gage
TOOL KIT CONFIGURATION:
Type of Case: Portable
Number of Cases: 1
Type of Construction: Steel/Aluminum
Type of Inserts: Unicellular Polyethylene Foam with Die Cut Tool Cavities
|Crimp Applications||Machined Contacts|
|Crimp Tool Type||Indent Tools|
