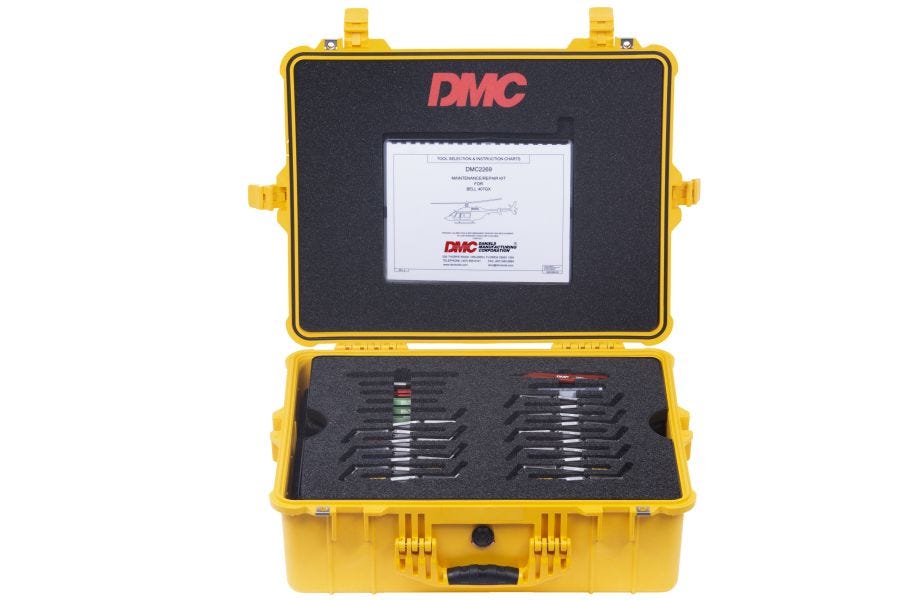

The DMC2269 kit supplies your staff with both the information and the tools necessary to make this type of repair to the Bell 407GX in the shortest time possible. The DMC2269 kit contains all of the tooling to connector, contact and terminal cross-reference information needed to support the Bell 407GX. In addition, the kit also contains illustrated operating instructions for the required tooling.
DMC CONNECTOR COVERAGE
Amphenol “PT”
Amphenol PCD “RSE”, “SJT”
Artex Products
Deutsch Terminal Junction Modules, ABC, CTJ
ECS CBR, CBS, CTR, CTS
Leach Relay Sockets
Positronic GMCT
Winchester MRAC
MIL-R-6106 Relays
AS7928 Insulated/Uninsulated Terminals
MIL-S-12883 Relay Sockets
MIL-DTL-24308 Rack and Panel
MIL-DTL-26482 1, 2
MIL-DTL-38999 1, 2, 3
MIL-PRF-39012 RF and Coaxial
AS50151 3450
AS81714 2
AS81824 Insulated Splices
MIL-DTL-83723 3
| Aircraft/Vehicle Manufacturer | Bell |
|---|---|
| # of Cases | 1 |
| Case Material | High Performance Plastic |
| Case Type | Carry Case |
| Shipping Weight | 45|45 |
