DMC2268

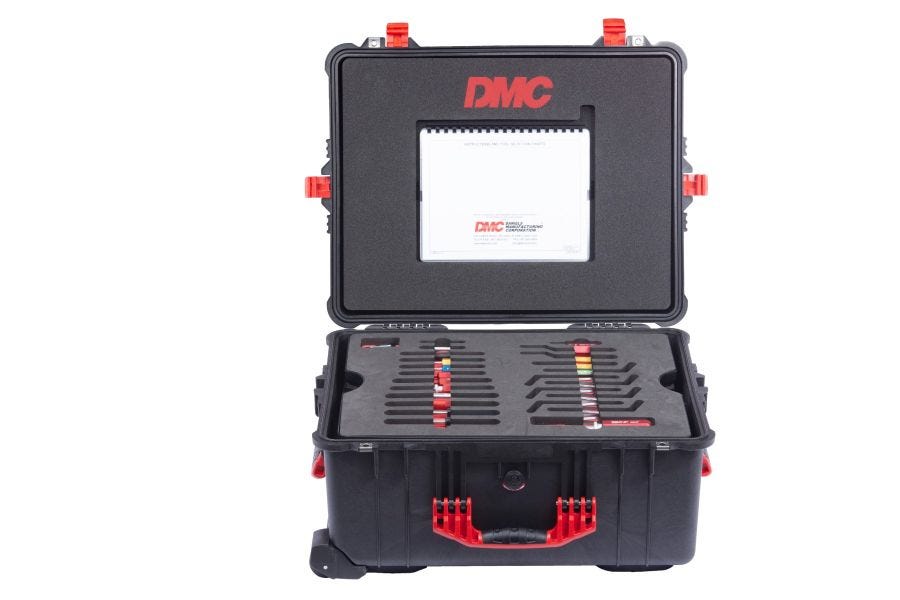

The DMC2268 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the Airbus H130. In addition, the kit also contains illustrated operating instructions for the required tooling.

DMC2268 CONNECTOR COVERAGE:

MIL-DTL-12883    Relay Sockets
MIL-DTL-24308     D-Subminiature
SAE-AS7928    Insulated Terminals, Class 1
SAE-AS20659    Uninsulated Terminals, Class 1
SAE-AS25036    Insulated Terminals, Class 1
SAE-AS50151    Series 3450
SAE-AS81569    Series 2 (ARINC 404)
SAE-AS81714    Series 1, Terminal Junction Pins & Series 2, Terminal Junction Sockets
SAE-AS81824    Insulated Splices, Class 1
Airbus    ABS0831, ARINC 600
ASNE Standards    ASNE0052, ASNE0053, ASNE0362, ASNE0461
EN Standards    EN2997, EN3545, EN3645 (MIL-DTL-38999, Series 3), EN3646 (MIL-DTL-26482, Series 2), EN4165
Eurocopter Standards     MBBN Series
GLENAIR    Series 80 Mighty Mouse
NSA Standards    NSA Junction Modules
Souriau    Non-Magnetic D-Subminiature
Rockwell Collins    Thin-Line II Series
TE Connectivity    Mate-N-Lok
