DMC2232

Bombardier Challenger 300/350 Wiring System Maintenance Kit

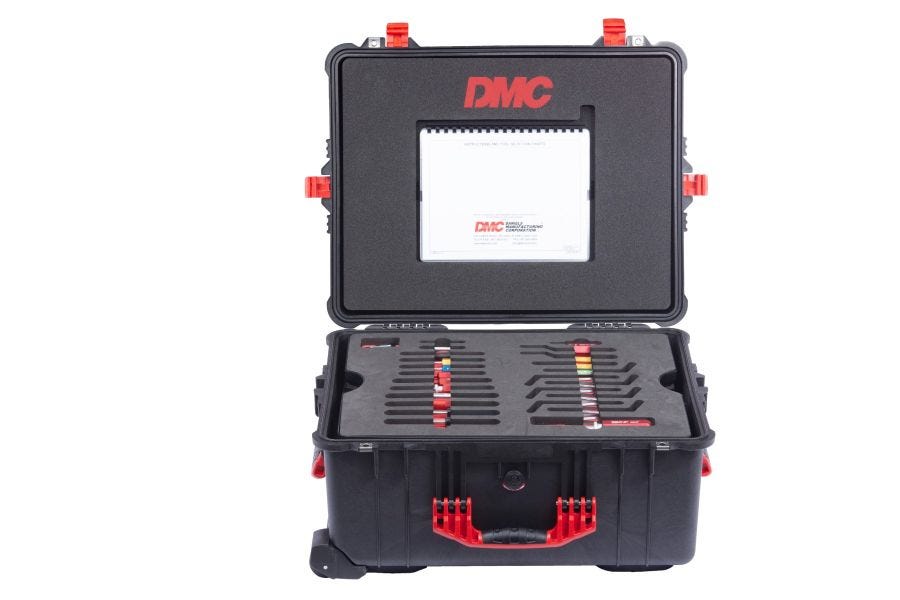

The DMC2232 Bombardier Challenger 300/350 Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC2232  includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.



DMC CONNECTOR COVERAGE
MIL-DTL-12883    Relay Sockets
MIL-DTL-24308    D-Summiniature
MIL-DTL-26482    Series 1, 2
MIL-DTL-26500    Firewall Connectors
MIL-DTL-38999    Series 1, 2, 3
MIL-DTL-83723    Series 3
SAE-7928    Insulated & Uninsulated Terminals & Splices
SAE-50151    3450 Series
SAE-81659    ARINC 404
SAE-81714    Terminal Junctions
Amphenol RF    SMA Plugs
ECS    SMA and TNC Plugs
Emteq    TNC Plugs
Esterline (Leach);   Relay Sockets
ITT Cannon    BKA, DCMA, DPX*MA, D-Subminiature
Kidde/Fenwal    Fire Detection Connectors
Positronic    RD Series
Radiall    DSX, NSX, and 691 Series
Rockwell Collins    Thin-Line Series
Souriau    853 Series
TE Connectivity    Amplimite, CPC, PIDG, Solistrand, Stratothem, and Ultra- Fast .250 Series
Times Microwave    N and TNC Plugs
Raychem (TE)    D-436 Series


More Information
Aircraft/Vehicle ManufacturerBombardier
# of Cases1
Case MaterialHigh Performance Plastic
Case TypeWheeled Case
Shipping Weight55
