DMC2200

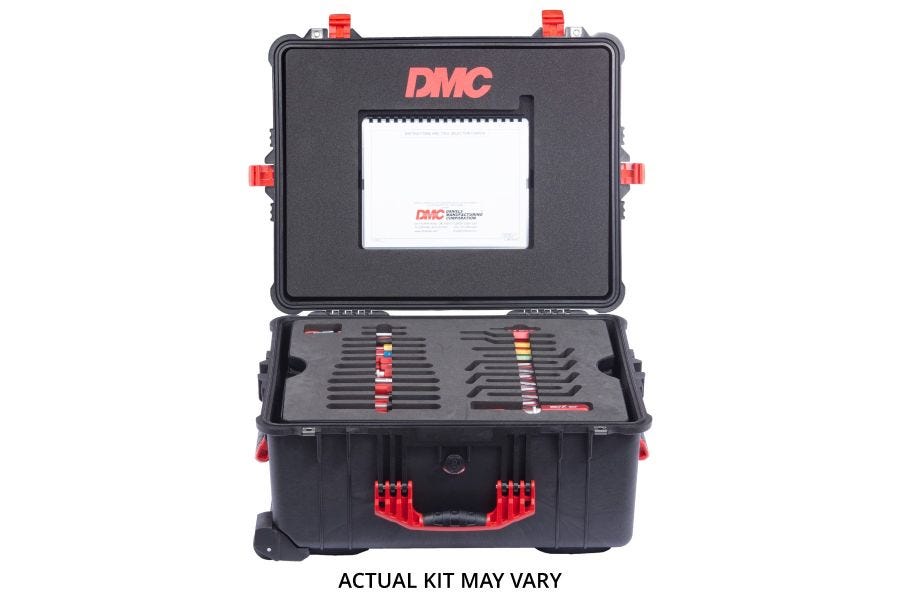

The DMC2200 Dassault Falcon 7X/8X Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC2200 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.

DMC CONNECTOR COVERAGE
MANUFACTURER    SERIES
Aero Electric     AE3, AE55, AE66, AE77
AIR LB    1935, SIM, Modules
Amphenol     MB*, TV, 48, 944, AD/AE, JT, LJT, SJT, CTV
Burndy     Hyfen Bantam
Deutsch (TE)    9-Type, D600, 699, 983, ACT, AFD, DFE, DMC-M, FDBA
ECS    RF Coaxial
Fenwall    Fire Detection Connectors
Huber & Suhner    RF Coaxial
Hypertonics      L
ITT Cannon    BKA*, CA, CV, DPX, KJ, KJA, PV, C48
Jupiter    JA
Matrix    MDE, MDG, MDP
Molex    Micro-Fit, Mini-Fit, Standard .062
Palco    PK27
Pyle National     83T, BT, ZZ
Radiall    DSX, NSX, RFCoax, Quadrax
Souriau    851, 8LT, 8T, 8D, 891, 8525, 8526, 8533, 8630, 8631, 8635, D-Sub, S600
Switchcraft    Micro-Con-X
MIL-DTL-26500    Firewall Connectors
MIL-PRF-38999    1, 2, 3
MIL-T-7928    Insulated/Non-Insulated Terminals
