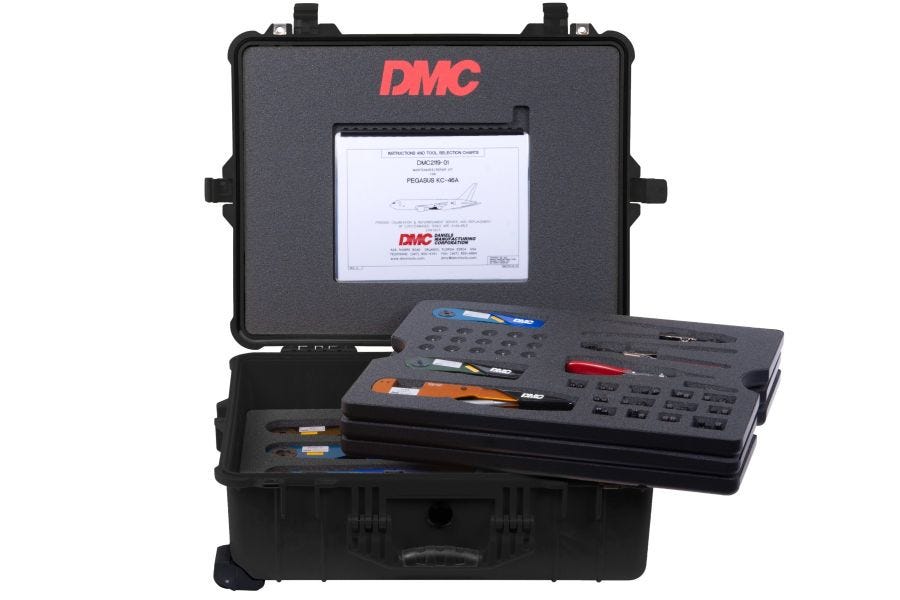

The DMC2119 KC-46A Pegasus Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC2119 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.
DMC CONNECTOR COVERAGE
Aerospace Optics CTS Plug Connectors
Amphenol PT*CE Series
Amphenol Aerospace 48, TV Series
Amphenol Matrix Matrix, SAE-AS50151 Series
Amphenol PCD RSE Relays
Cooper AMC Connectors
Cory CTZ Series
Glenair Mighty Mouse Series
ITT Cannon BKAD, BKAE, BKAF, DPX2DA,DPX*MA, DPX4ME, DPXBMA
Kidde Fire Detection Connectors
Kings RF Coaxial
Leach Relay Sockets
Radiall EPXA, EPXB
Souriau/Burndy Hyfen Bantam Series, S280 Ground Blocks, 891/2 Series, YHLZD Series
TE Ultra-Fast Terminals, Strato-Therm, PIDG Terminals, Raychem Splices, PCB Terminals
MIL-DTL-12883 Relay Sockets
MIL-DTL-24308 D-Subminature
MIL-DTL-26482 1, 2
MIL-PRF-39012 RF Coaxial
MIL-DTL-81511 3
MIL-DTL-81659 2
MIL-DTL-81703 2
SAE-AS50151 3400, 3450 Series
MIL-DTL-26500 Firewall Connectors
MIL-DTL-38999 1, 2, 3, 4
Boeing MIL-DLT-26500 BACC45FM, BACC45FN, BACC45FS, BACC45FT, BACC63BN, BACC63BP, BACC63BV, BACC63CB, BACC63CC, BACC63DW, BACC63DY
Boeing SAE-AS50151,
3450 Series BACC63CD, BACC63CE
Boeing MIL-DTL-83723, Series 3 BACC63CM, BACC63CN
Boeing MIL-DTL-38999,
Series 3 BACC63CT, BACC63CU, BACC63DB, BACC63DC, BACC63EK, BACC63EL
Boeing AS81824 BACS52K, BACS52L, BACS52T
Boeing Quick Disconnect Plugs BACC63DG (miniature), BACC63DE
Boeing Quick Disconnect Receptacle BACC63DH (minature), BACC63DF
Boeing Relay Sockets BACS16AF, BACS16AG, BACS16AH, BACS16W, BACS16X
Boeing Connector, Plug, Band Platform BACC63DP
Boeing Connector, Receptacle, Band Platform BACC63DT
Boeing Connector, Plug, EMI, Push-Pull BACC63EG, BACC63EH
Boeing Connector Inserts, Plugs & Receptacles BACC65
Boeing Connector, Plug, COAX/TWINAX BACC66F
Boeing Connector, Receptacle, COAX/TWINAX BACC66H, BACC66K
Boeing Uninsulated Terminal Lugs BACT12AV, BACT12M
Boeing Insulated Terminal Lugs BACT12AC
Boeing Uninsulated Splices BACT12C
Aircraft/Vehicle Manufacturer | Boeing |
---|---|
# of Cases | 2 |
Case Material | High Performance Plastic |
Case Type | Carry Case |
NSN / Associated #s | 5935016977729 |
Shipping Weight | 35|35 |
