DMC1663A

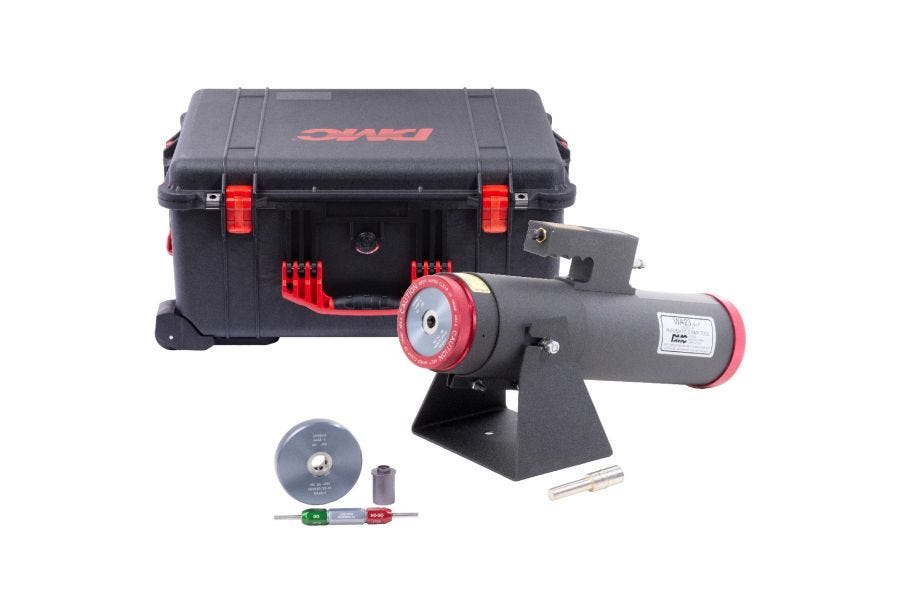

WA23 Tool Kit with all Mil-Spec Die Assemblies, Locators & Gages
$6,149.00

DMC1663A Maintenance Kit For Mil-Spec Large Size Contacts 8 through 0000.



The WA23 (M2252/23-01) Pneumatic Indent Crimp Tool



DMC’s heavy pneumatic indent crimp tool functions with the push of a button for operator ease. This heavy duty crimp tool accommodates large size contacts 8 through 0000 (AWG) and operates on standard 90–125 psi (5.4–8.16 BAR) shop air sources.



It is engineered with the operator’s safety in mind and features a full cycle control system. This tool is portable and needs no extra booster for large size contacts.



The standard die assembly and positioner are easily interchangeable with no special tool required. Custom dies and positioners may be designed to specific requirements. An optional foot valve is available upon request (P/N WA23FP).



Contains one each:
M22520/23-01
M22520/23-02 and Gage G693
M22520/23-03 and Gage G694
M22520/23-04 and Gage G695
M22520/23-05 and Gage G696
M22520/23-06 and Gage G697
M22520/23-07 and Gage G698
M22520/23-09
M22520/23-10
M22520/23-11
M22520/23-12
M22520/23-13
M22520/23-14
M22520/23-15
M22520/23-16



DMC1663A Connector Coverage:
MIL-C-5015 Front Release (3400 Series)
MIL-C-5015 Rear Release (3450 Series)
MIL-C-22992 Class L Heavy Duty Cylindrical Connectors

More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypeIndent Tools
DiesWA23
PositionerWA23 Locator
Power TypePneumatic
Shipping Weight63
