DMC1535

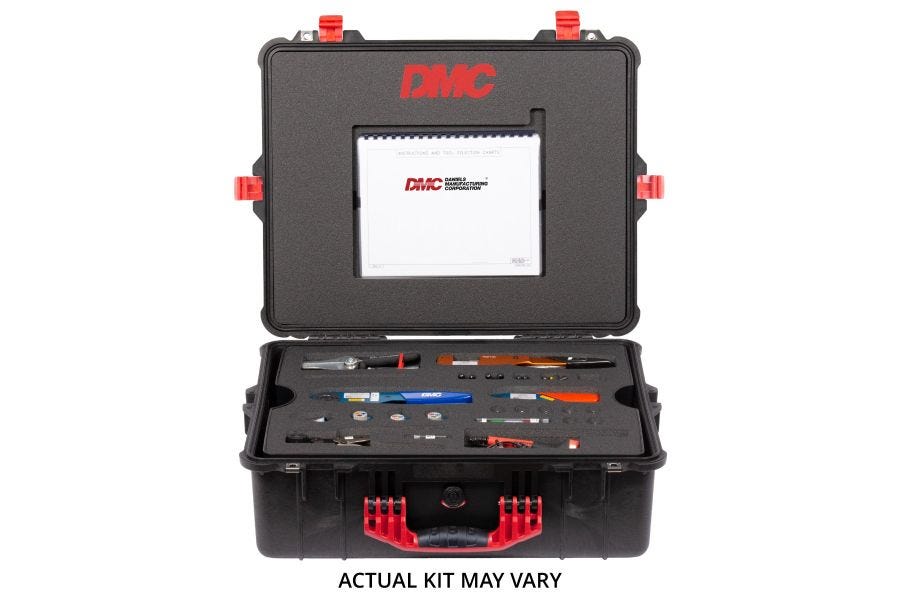

The DMC1535 Light Armored Vehicle LAV-25 & LAV-AT Wiring System Maintenance Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1535 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.
DMC CONNECTOR COVERAGE
MANUFACTURER SERIES
SAE-AS17143 Insulated Terminals
SAE-AS20659 Non-Insulated Terminals
SAE-AS25036 Insulated Terminals
MS27142 Single Wire Connector
MS27144 Single Wire Connector
MIL-DTL-24308 D-SUB
MIL-DTL-26482 II
MIL-DTL-38999 I, III
SAE-AS50151 3450
MIL-DTL-55302 PWB Connectors
SAE-AS81824 Environmental Splices
Amphenol 44
Deutsch DS
Tyco/Raychem D-436
Aircraft/Vehicle Manufacturer | General Dynamics |
---|---|
# of Cases | 2 |
Case Material | High Performance Plastic |
Case Type | Carry Case |
NSN / Associated #s | 4940013724977 |
Shipping Weight | 46|32|32 |
