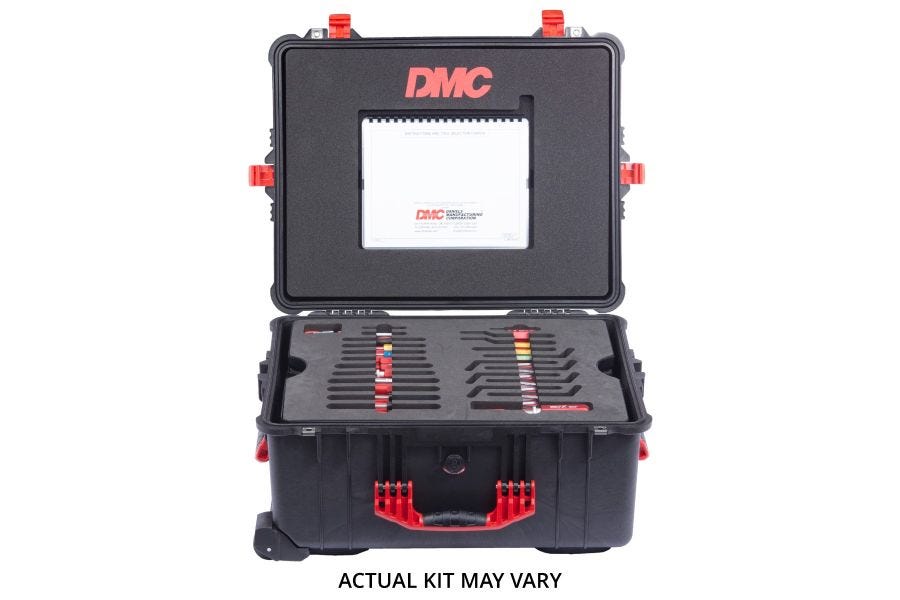

Gulfstream V G500/G550 Wiring System Maintenance Kit

The DMC1253 Gulfstream V/G500/G550 Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1253 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. The kit also contains illustrated operating instructions for the designated tooling.

DMC1253 Connector Coverage:
Aero Electric AE556 Series
AMP Mate-N-Lock, RM Series, PIDG Terminals, Wire Caps
Amphenol/Bendix BJ, BT-RA, JT, PT-CE Series
Collins Thin-Line Series
Deutsch A*T, AFD, DBA, DG123, DL, ESC, 56004, 56007, 56008, Common Termination System
ECS RF Coaxial
ITT Cannon BKAC/D/E, D*MA, DPX*NE Series
Korry Light Assemblies
Leach Relays
Matrix Science MB*, MT*, 944 Series
Positronics MD Series
Raychem Environmental Splices, Solder Sleeves
Trompeter RF Coaxial

More Information
Aircraft/Vehicle ManufacturerGulfstream
# of Cases1
Case MaterialHigh Performance Plastic
Case TypeCarry Case
Shipping Weight59
