DMC1220

C-130H Hercules Wiring System Maintenance Kit

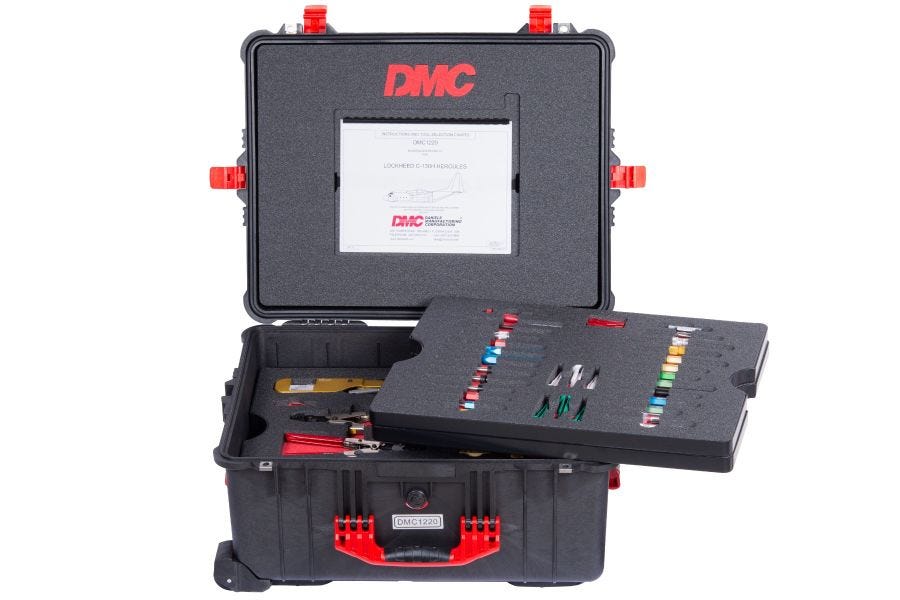

DMC1220 C-130H Maintenance Kit For Electrical Connectors and Wiring Systems.



The DMC1220 kit contains all of the tooling to connector, contact and terminal cross-reference information needed to support the C-130H. In addition, the DMC1220 kit also contains illustrated operating instructions for the required tooling.



AMP    PIDG, Solistrand Insulated/Uninsulated Terminals/ Splices, RF-Coaxial
Amphenol     165, RF-Coaxial, 162GB Series
ARINC600    Rack & Panel
Bendix     48, BT-MA, JT, TV, PT-SE, PT, PC
Burndy     Smooth Bantam, Hyfen
Collins     Thin-Line, Pro-Line
Deutsch     DS, DM, RTK
Delta     RF-Coaxial
Fenwal/Edison    Overheat Detection Connectors
Interconnectron    FC, FH, FZ
ITT Cannon    BKAD, CA, DPA, DPD, DPE, DPJM, DPXB, DPX*MA, KM, KO
Kings Electronics     RF-Coaxial
Lockheed     Various LN Specifications
ONO “AIMS”    ONO89560
Relay Sockets     Various Specifications
Trompeter    RF-Coaxial
Winchester    MRAC, MRE
MIL-DTL-24308    Rectangular Rack & Panel
MIL-DTL-26482    Series 1 & 2
MIL-DTL-26500    Firewall Connectors
MIL-DTL-38999    Series 1, 2 & 3
AS50151    RF- Coaxial
AS81511    Series 2 & 4
MIL-DTL-83723    Series 3


More Information
Aircraft/Vehicle ManufacturerLockheed
# of Cases1
Case MaterialHigh Performance Plastic
Case TypeCarry Case
NSN / Associated #s5180013432169
Shipping Weight57
Sales Literature (890.22 kB)
