DMC1020-1

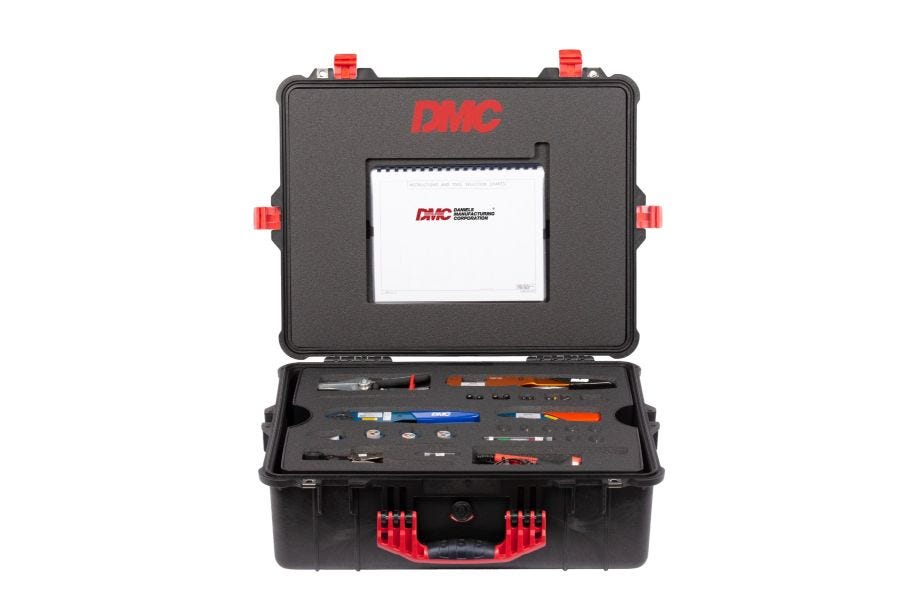

DMC1020-1 MAINTENANCE KIT
The DMC1020-1 CASA CN-235 Wiring System Maintenance Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1020-1 kit includes the tool to application cross reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. The kit also contains illustrated operating instructions for the designated tooling.

DMC CONNECTOR COVERAGE
MANUFACTURER    SERIES
Aerospatiale    MIL-C-26482 Series 1, ARINC 600 Rack & Panel, Poke-Home, Terminal Block Modules, Miniature Bayonet
AMP    Amplimite, “RME” Series, Solistrand Series, Uninsulated Terminals & Splices
Amphenol    “48”, “418” Series
ARINC 600    Rack & Panel
Bendix    “LJT” Series
Collins Radio    Thin Line I
Deutsch    Terminal Block Modules, “ADS/DS”, “DBA30/FDBA”, “951”, Temperature/Firewall Type
Flight Connector    “FC/FH/FZH” Series
ITT Cannon    “D*MA” Series MIL-C-24308, “DPA”, “DPX*MA”, “KJL”, “PVW” Series
Pyle National    “ZZ” Series
Socapex    “LJT”, “45” Series
Souriau    “851”, “852”, “892” Series
MIL-DTL-26482    Series 1
MIL-DTL-26500    Bayonet or Threaded Couplings
M7928    Insulated Terminals & Splices
