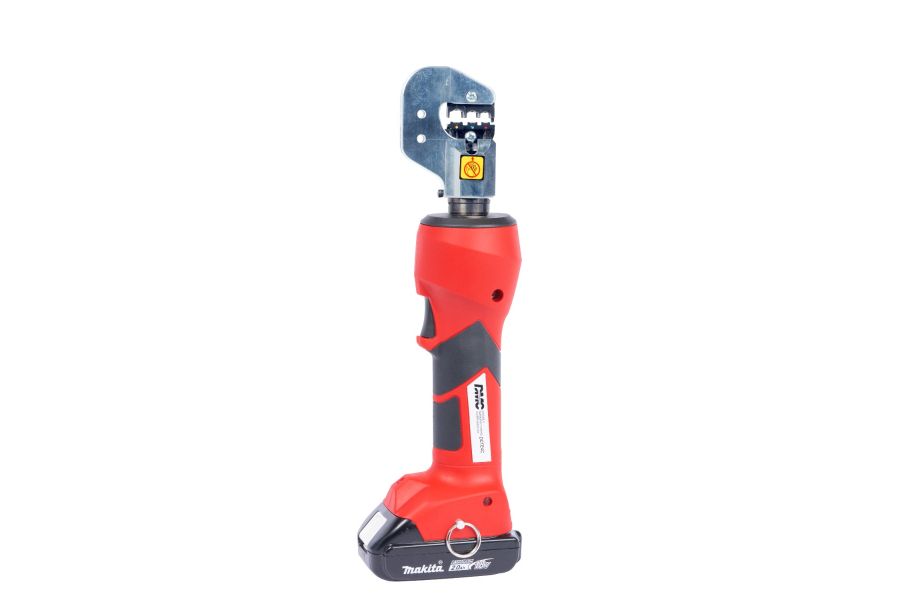

DCTE4C

1.5 Ton Battery-Powered Crimp Tool
$4,559.69

The DCTE4C is a battery-operated hydraulic crimp tool intended for use with DMC's "DCT4"
interchangeable dies. This tool can accommodate more complex multi-piece die sets including
dies that are compatible with AS39012 coaxial connectors, AS7928 terminals and splices, and
other commercial and military terminating components. These dies produce crimp patterns
including confined crescent, half crescent, hex, circle, and F-crimp indent. The DCTE4C is sold without dies.


The DCTE4C is equivalent to DMC's "DCT4" series hand tools with the added benefits of portable
power and next-generation connectivity. Users can track tool performance, users, and projects.
Crimp data is viewable in real-time on the LED display or can be downloaded via an app.



FEATURES
• Bluetooth® connectivity
• Tracks number and quality of crimps
• Ergonomic design allows one-handed operation
• Die automatically opens when crimp is complete
• Die can be released mid-cycle to make adjustments
• Head rotates 350°



CRIMP CAPABILITIES
• Max. Crimp Force: 1.5 Tons (13.3 kN)
• Avg. Crimp TIme: 2 Seconds
• Avg. Crimps per Charge: Approx. 150


SPECIFICATIONS
• L x W x H: 4.5 x 2.9 x 13.8 (in)
114 x 74 x 351 (mm)
• Weight (with battery): 3.51 lb (1.79 kg)
• Sound Level: 75 db (A) at 1 meter
• Vibration: <8.2 ft/s2 (2.5 m/s2)
• Hydraulic Oil: Shell Tellus® T-15


INCLUDED
• Carrying case
• Two 18 VDC, 2.0 Ah, Lithium Ion batteries
• One battery charger



BATTERY (Part # HDE-LI-B)
• 18 VDC, 2.0 Ah, Lithium Ion
• Charging Time: 22 minutes


OPTIONAL EXTENDED LIFE BATTERY
(Part # HDE-LI3-B)
• 18 VDC, 3.0 Ah, Lithium Ion
• Charging Time: 22 minutes


BATTERY CHARGER
• 120 VAC Part # HDE-LI-120C
• 230 VAC Part # HDE-LI-230C


VAC POWER ADAPTERS
• 120 VAC Part # HDE-120AC-A
• 230 VAC Part # HDE-230AC-A



MANUAL VERSIONS ARE ALSO AVAILABLE


Contact DMC for 230V tools.

More Information
Crimp ApplicationsInsulated Terminals, Uninsulated Terminals, Splices, Stamped & Formed Contacts
Crimp Tool TypeIndent Tools, DCT/EMC Tools
Power TypeBattery
Shipping Weight35
