Crimp Tool - Comp. to Tyco 59250
Mil P/N
  • M22520/40-01
  • For Crimping AS7928 Ring Terminals
  • Wire sizes 22 through 14

AMT4001 Crimp Tool for Terminals - M22520/40-01

♦ Cycle controlled

♦ Wire sizes 22 through 14

♦ Adjustable insulation barrel crimp

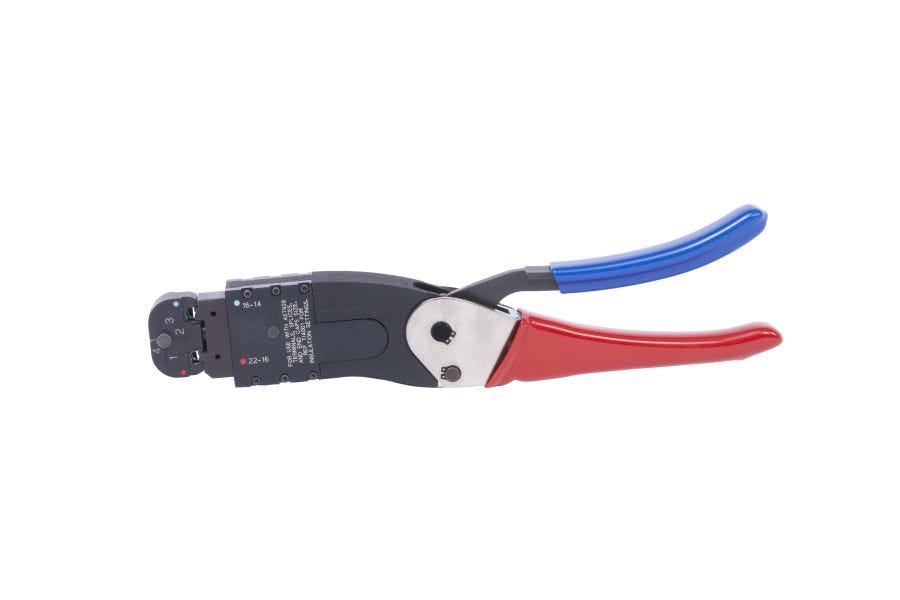

The AMT4001 (M22520/40-01) crimp tool is a fast, manually operated tool for crimping AS7928 (MIL-T-7928) Ring Terminals for wire sizes 22 through 14 (terminal color codes, Red, and Blue).

The AMT4001 provides a ratchet-controlled crimp to ensure full crimp force/closure is applied. The handles will not open until they have been fully closed and the crimp completed.

The tool is equipped with a locator to hold terminals in place for crimping.

The AMT4001 is 10 3/4 inches long, and weighs 1.48 lbs. For long life and optimum performance, this tool should be kept clean and handled carefully, as any other precision instrument.

MIL Qualified Gages are available for checking calibration.

Red Conductor - AMTG4301
Red Insulation - AMTG4303
Blue Conductor - AMTG4302
Blue Insulation - AMTG4304

Tool also produces crimped assemblies that comply with the IPC/WHMA-A-620-C Industry Guidelines for Stamped and Formed-Closed Barrel-Insulation Support Crimps.
