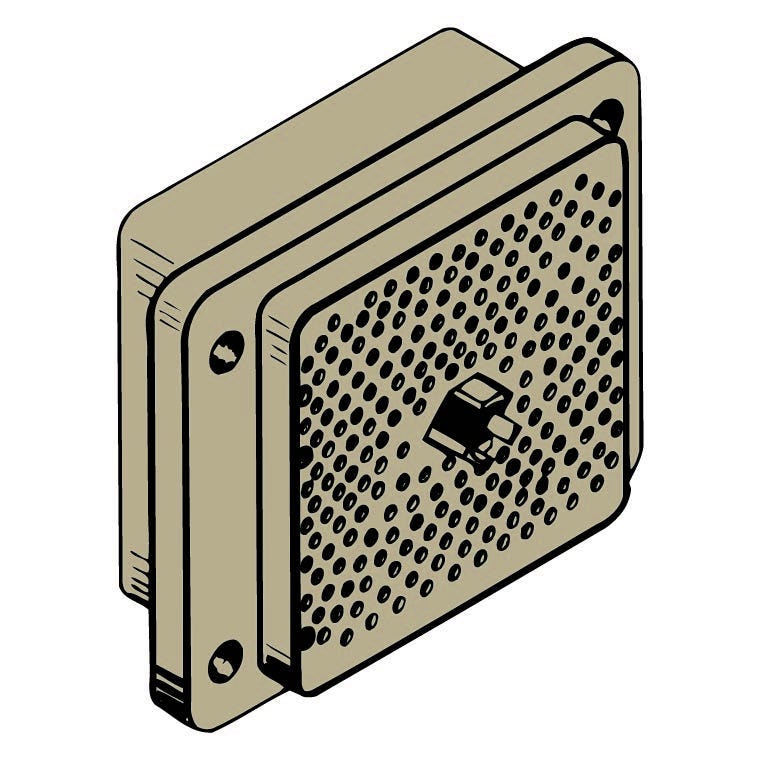

Rectangular - Rack and Panel

Mating End Sizes	Wire Barrel Size	Pin/Socket	Part No	Part No (Superseded)	Wire Range	Color BIN
20	20	P	M39029/34-271	MS17803-20-20	20-24	2 7 1
16	20	P	M39029/34-272	MS17803-16-20	20-24	2 7 2
16	16	P	M39029/34-273	MS17803-16-16	16-20	2 7 3
22	22	P	M39029/34-440	M39029/34-22-22	22-26	4 4 0
20	20	S	M39029/35-274	MS17804-20-20	20-24	2 7 4
16	20	S	M39029/35-275	MS17804-16-20	20-24	2 7 5
16	16	S	M39029/35-276	MS17804-16-16	16-20	2 7 6
22	22	S	M39029/35-441	M39029/35-22-22	22-26	4 4 1
16	20	P	M39029/36-277	MS17807-16-20	20-24	2 7 7
16	16	P	M39029/36-278	MS17807-16-16	16-20	2 7 8
16	20	S	M39029/37-279	MS17808-16-20	20-24	2 7 9
16	16	S	M39029/37-280	MS17808-16-16	16-20	2 8 0
N/A	16	S	M39029/80-438	M39029/80-16A	N/A	4 3 8
N/A	16	S	M39029/80-439	M39029/80-16B	N/A	4 3 9

Connector Family

Family Part	Description
M28748/3	Pin Contacts Size 16 & 20
M28748/4	Socket Contacts Size 16 & 20
M28748/9	Pin Contacts 16 Polarized Center Screw Lock
M28748/13	Pin Contacts 22
M28748/14	Socket Contacts 22
M278748/10	Socket Contacts 16 Polarized Center Screw Lock

Reference

BIN stands for Basic Identification Number which can be identified by the colored bands on the ends of contacts. Referring to the diagram, the order starts from the very end of the wire barrel end and continues towards the mating end. In this example, the BIN number is 260. Refer to the table below for the color code reference.

Contacts for MIL-DTL-28748
