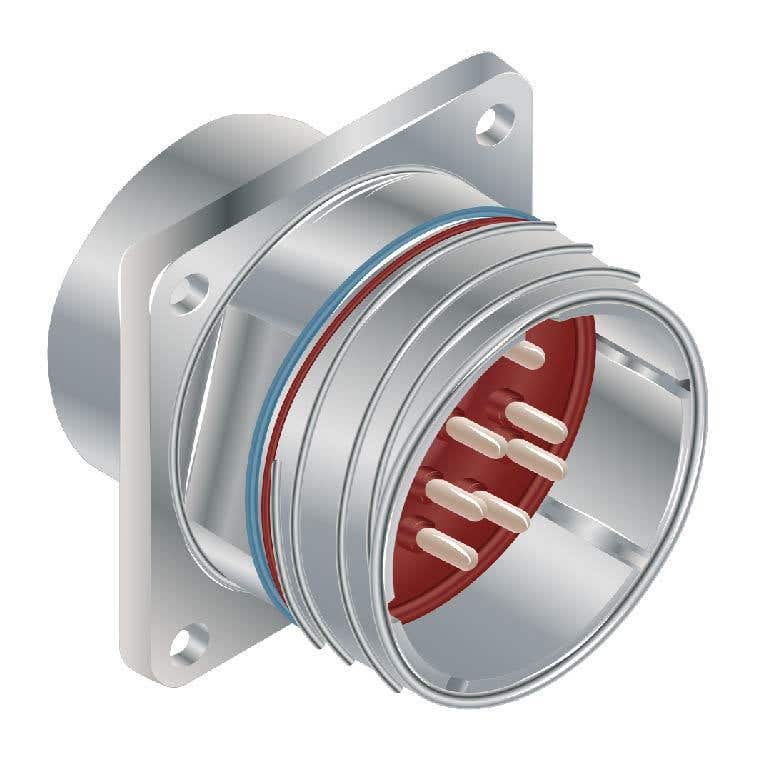

MIL-STD 1760 provides a common, cross platform, mechanical, electrical, and digital interface between weapons/external equipment stores and aircraft.
Mating End SizesWire Barrel SizePin/SocketPart NoPart No (Superseded)Wire RangeColor BIN
12N/APM39029/28-211N/AN/A 2 1 1
12N/APM39029/28-409N/AN/A 4 0 9
2020SM39029/56-351MS27490-2020-24 3 5 1
1616SM39029/56-352MS27490-1616-20 3 5 2
1010SM39029/56-527N/A10 5 2 7
2020PM39029/58-363MS27493-2020-24 3 6 3
1616PM39029/58-364MS27493-1616-20 3 6 4
1010PM39029/58-528N/A10 5 2 8
N/A12SM39029/75-416N/AN/A 4 1 6
N/A12SM39029/75-417N/AN/A 4 1 7
88PM39029/90-529N/A8 5 2 9
88SM39029/91-530N/A8 5 3 0
88PM39029/113-625N/AN/A 6 2 5
88SM39029/114-628N/AN/A 6 2 8
