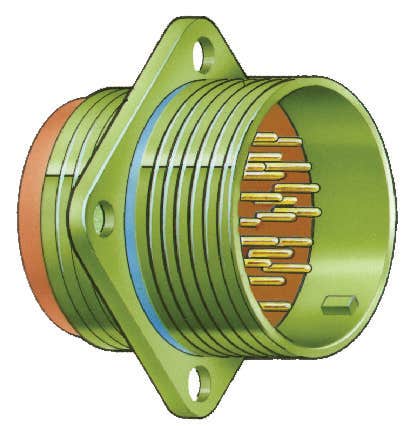

Contacts for MIL-DTL-83723, Series 2, INACTIVE
Circular - Threaded Coupling - Rear Release Contacts
| Mating End Sizes | Wire Barrel Size | Pin/Socket | Part No | Part No (Superseded) | Wire Range | Color BIN |
|---|---|---|---|---|---|---|
| 16 | 16 | P | M39029/29-212 | M39029/29-16-16 | 16-20 | 2 1 2 |
| 12 | 12 | P | M39029/29-213 | M39029/29-12-12 | 12-14 | 2 1 3 |
| 8 | 8 | P | M39029/29-214 | M39029/29-8-8 | 8 | 2 1 4 |
| 4 | 4 | P | M39029/29-215 | M39029/29-4-4 | 4 | 2 1 5 |
| 1/0 | 1/0 | P | M39029/29-216 | M39029/29-0-0 | 1/0 | 2 1 6 |
| 16S | 16 | S | M39029/30-217 | M39029/30-16S-16 | 16-20 | 2 1 7 |
| 16 | 16 | S | M39029/30-218 | M39029/30-16-16 | 16-20 | 2 1 8 |
| 12 | 12 | S | M39029/30-219 | M39029/30-12-12 | 12-14 | 2 1 9 |
| 8 | 8 | S | M39029/30-220 | M39029/30-8-8 | 8 | 2 2 0 |
| 4 | 4 | S | M39029/30-221 | M39029/30-4-4 | 4 | 2 2 1 |
| 1/0 | 1/0 | S | M39029/30-222 | M39029/30-0-0 | 1/0 | 2 2 2 |
| 16 | 16 | P | M39029/85-454 | M39029/851616C1 | 16-20 | 4 5 4 |
| 16 | 16 | P | M39029/85-455 | M39029/851616C2 | 16-20 | 4 5 5 |
| 16 | 16 | P | M39029/85-456 | M39029/851616C3 | 16-20 | 4 5 6 |
| 16 | 16 | P | M39029/85-457 | M39029/851616C4 | 16-20 | 4 5 7 |
| 12 | 12 | P | M39029/85-458 | M39029/851212C1 | 12-14 | 4 5 8 |
| 12 | 12 | P | M39029/85-459 | M39029/851212C2 | 12-14 | 4 5 9 |
| 12 | 12 | P | M39029/85-460 | M39029/851212C3 | 12-14 | 4 6 0 |
| 12 | 12 | P | M39029/85-461 | M39029/851212C4 | 12-14 | 4 6 1 |
| 16 | 16 | S | M39029/86-462 | M39029/851616C1 | 16-20 | 4 6 2 |
| 16 | 16 | S | M39029/86-463 | M39029/851616C2 | 16-20 | 4 6 3 |
| 16 | 16 | S | M39029/86-464 | M39029/851616C3 | 16-20 | 4 6 4 |
| 16 | 16 | S | M39029/86-465 | M39029/851616C4 | 16-20 | 4 6 5 |
| 12 | 12 | S | M39029/86-466 | M39029/851212C1 | 12-14 | 4 6 6 |
| 12 | 12 | S | M39029/86-467 | M39029/851212C2 | 12-14 | 4 6 7 |
| 12 | 12 | S | M39029/86-468 | M39029/851212C3 | 12-14 | 4 6 8 |
| 12 | 12 | S | M39029/86-469 | M39029/851212C4 | 12-14 | 4 6 9 |
| 16S | 16 | S | M39029/86-510 | N/A | 16-20 | 5 1 0 |
| 16S | 16 | S | M39029/86-511 | N/A | 16-20 | 5 1 1 |
| 16S | 16 | S | M39029/86-512 | N/A | 16-20 | 5 1 2 |
| 16S | 16 | S | M39029/86-513 | N/A | 16-20 | 5 1 3 |
Connector Family
| Family Part | Description |
|---|---|
| M83723/17 | Cable Connecting Receptacle Socket Contacts |
| M83723/18 | Cable Connecting Receptacle Pin Contacts |
| M83723/19 | Wall Mount Receptacle Socket Contacts |
| M83723/20 | Wall Mount Receptacle Pin Contacts |
| M83723/21 | Box Mount Receptacle Socket Contacts |
| M83723/22 | Box Mount Receptacle Pin Contacts |
| M83723/23 | Plug Socket Contacts |
| M83723/24 | Plug Pin Contacts |
Reference
BIN stands for Basic Identification Number which can be identified by the colored bands on the ends of contacts. Referring to the diagram, the order starts from the very end of the wire barrel end and continues towards the mating end. In this example, the BIN number is 260. Refer to the table below for the color code reference.
