Single Position Head

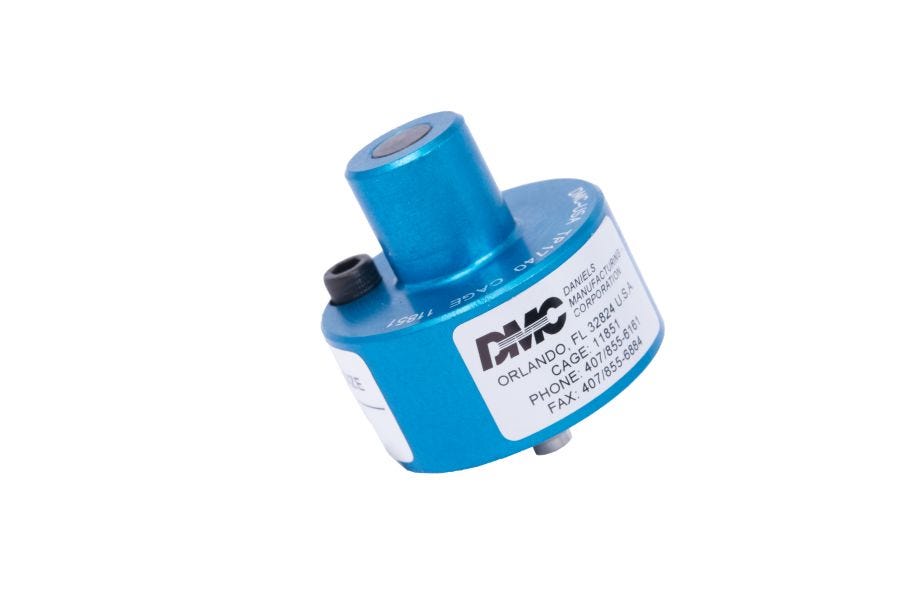

TP1740 is a single position head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.


Can also be used with these DMC Crimp Tools:

WA27F Pneumatic Crimp Tool Frame


More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
Shipping Weight0.2
Envelope Drawing (209.87 kB)
