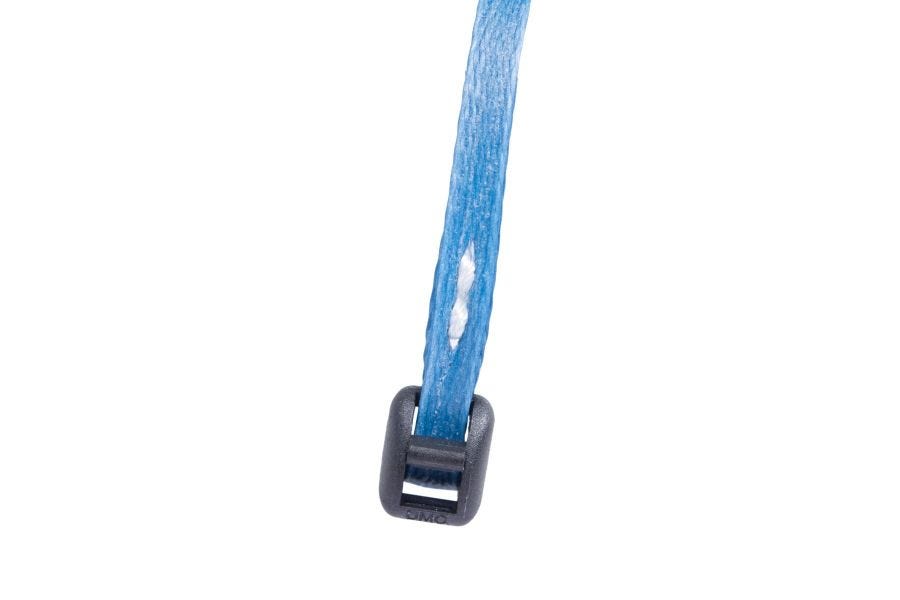

SLF2-18BLU

Outgassed LaceLok is available for space and commercial use.

Must Be Purchased in Increments of 100

LaceLok is a revolutionary solution for secondary wire harness support and is a direct replacement for hand-tied lace and cable ties. The LaceLok system consists of LaceLok (Cable Lacing Fasteners or CLF) and the LaceLok installation tool which combined provide safer and superior results.

Outgassed LaceLok is made of non-abrasive aerospace-grade meta-aramid fiber lace and features a small, rounded fastener. It can withstand extreme temperatures from -65C to 260C and is resistant to common chemicals including hydraulic fluid, JP-8 jet fuel, lubricating oil, and isopropyl alcohol. Outgassed LaceLok has been tested using ASTM E595-15(2021), Standard Test Method for Total Mass Loss, and Collected Volatile Condensable Materials from Outgassing in a Vacuum Environment. Per the requirements of ASTM E595-15 (2021) and NASA Technical Standard MSFC-SPEC-1443, the Total Mass Loss (TML) is < 1% and the Collected Volatile Condensable Material (CVCM) is < 0.10% after the outgassing process.

LaceLok offers enhanced ergonomics eliminating abrasions, operator fatigue, and repetitive motion injuries often caused by cable ties and hand-tied lace. Installing LaceLok is simple. The user wraps LaceLok around the bundle and squeezes the trigger 2-3 times to tighten, lock, and cut the excess lace. LaceLok terminates consistently at 20 lbs (+/- 2 lbs) of applied tension. The resulting loop force is controlled by the fastener, not the user.

Application and Minimum Tensile Strength:

Single Wrap = 55 lbs (240 N)
Double Wrap = 110 lbs (490 N)
Triple Wrap = 165 lbs (730 N)
