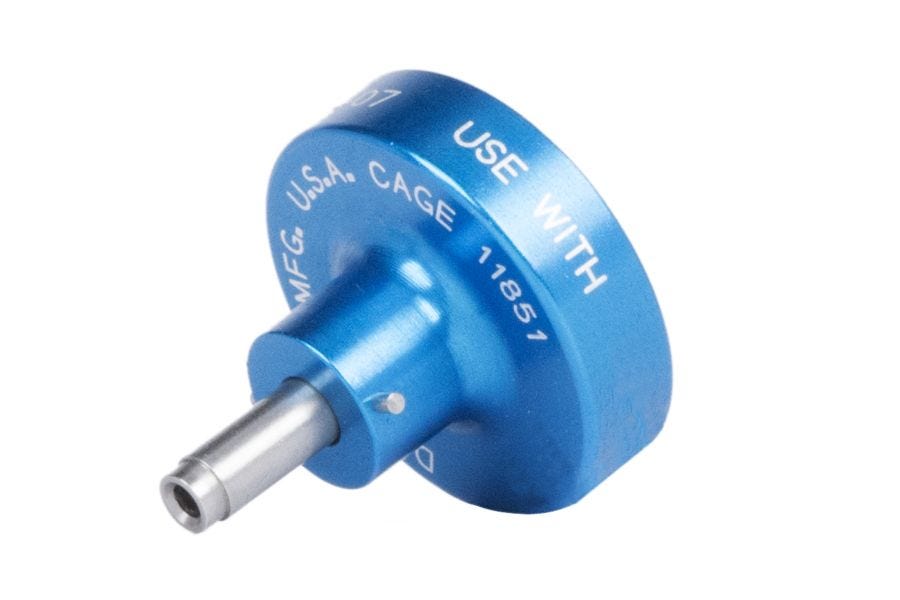

This positioner is used with the M22520/2-01, AFM8 tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Contacts serviced:

Cannon 2020
Cannon 2026
Cannon L3198-20HD

Can be used with these DMC Crimp Tools:

AFM8 Hand Crimp Tool Frame
WA22 Pneumatic Crimp Tool Frame
AFME8B Battery Crimp Tool Frame

More Information
Crimp ApplicationsMachined Contacts
Crimp Tool TypePositioners
NSN1285011967847, 5120001569195
Shipping Weight0.05
Envelope Drawing (30.42 kB)
