DMC5002

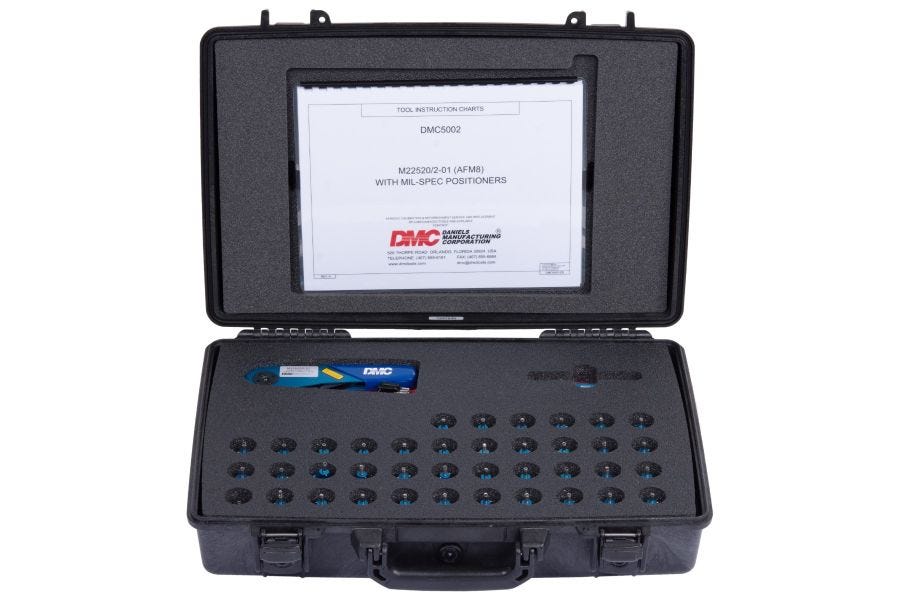

DMC5002 AFM8 (M22520/2-01) Tool Kit for Electrical Connectors and Wiring Systems

The DMC5002 kit supplies your staff with the information and accessories necessary to use your AFM8 (M22520/2-01).

Illustrated operating instructions are included for the AFM8 and accessories.

The AFM8 gives a Mil-Standard 4/8 indent crimp, which assures maximum tensile strength. The cycle controlled precision ratchet assures consistently accurate crimps every time. The tool frame has a built-in 8 step selector knob for ease in dialing the correct crimp depth setting for the wire being used.

DMC5002 TOOL AND ACCESSORY LIST:
1 AFM8 Crimp Tool
39 M22520/2 Positioners
1 Inspection Gage

TOOL KIT CONFIGURATION:
Type of Case:  Portable
Number of Cases:  1
Color:  Black
Type of Construction:  Black Polypropylene Copolymer Case
Application:  M22520/2-01
Type of Inserts:  Unicellular Polyethylene Foam with Die Cut Tool Cavities
