DMC314MOD1

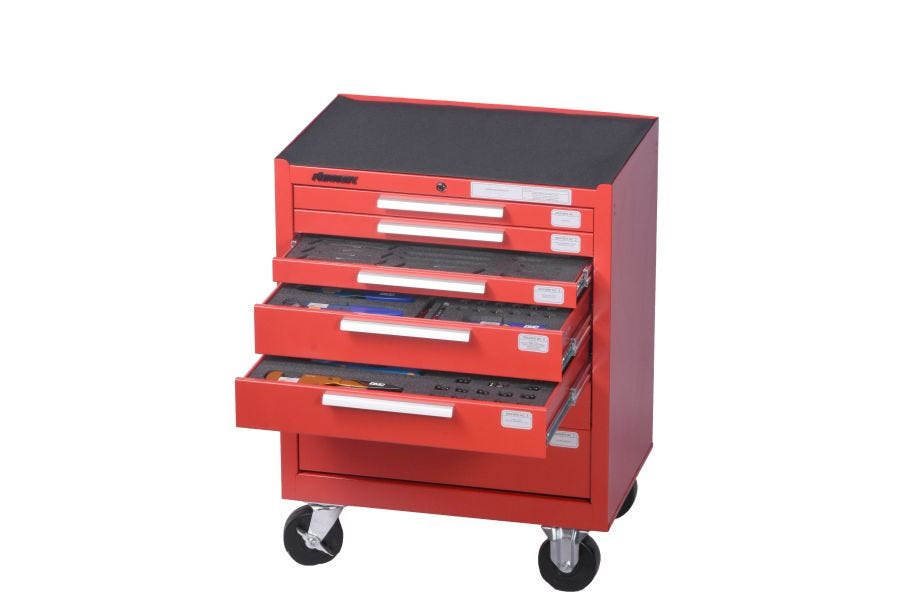

The DMC314MOD1 kit contains all of the tooling to connector, contact and terminal cross-reference information needed to support the F-16 Fighting Falcon. In addition, the kit also contains illustrated operating instructions for the required tooling.

DMC314MOD1 CONNECTOR COVERAGE
MANUFACTURER    SERIES
Airborn    WTBT Series
AMP    Champ, W Series
Amphenol    57, 97 Series
Amphenol RF    RF Coaxial
Automatic Connector    RF Coaxial
Berg/Dupont    Mini-PV Series
Bendix    PT, SJT Series
Burndy    Trim-Trid, Hyfen Bantam, PCDD, Smooth Bantam Series
Cablewave Systems     RF Coaxial
Deutsch    38174, 94603, CTJ, RTK Series
Elco    8223 Series
Garry Mfg.    102 Series
General Dynamics    RF Coaxial
Hypertronics    KA Series
ITT Cannon    DL, D*MA, D*M, 2D, RK Series
Kings Electronics    RF Coaxial
Microdot    Printed Circuit Boards
Micro Mode    RF Coaxial
Omni-Spectra    RF Coaxial
Raychem    MTCB, D-436 Series
Sealectro    RF Coaxial
Smith, Inc.    HDP Series
TRW Cinch    Printed Circuit Boards
Teradyne    I/O Series
Thomas & Betts    Insulated Terminals
Trompeter    RF Coaxial, Twinax/Triax
Viking    Thorkom, JN Series
Virginia Panel    Patchboards
Winchester    HDB, SREC Series
MIL-PRF-6106    Relay Sockets
AS7928    Insulated Terminals
MIL-C-23329    RF Coaxial
MIL-DTL-24308    Rack & Panel
MIL-DTL-26482    Series 1 and 2
MIL-DTL-38999    Series 1 and 2
MIL-PRF-39012    RF Coaxial
SAE-AS50151    3100, 3450 Series
MIL-C-55235    TPS Series
MIL-C-55302    Printed Circuit Boards
MIL-C-81511    Series 4
SAE-AS81703    Series 2 and 3
MIL-DTL-83723    Series 1, 2 and 3
MIL-DTL-83733    Rack & Panel
